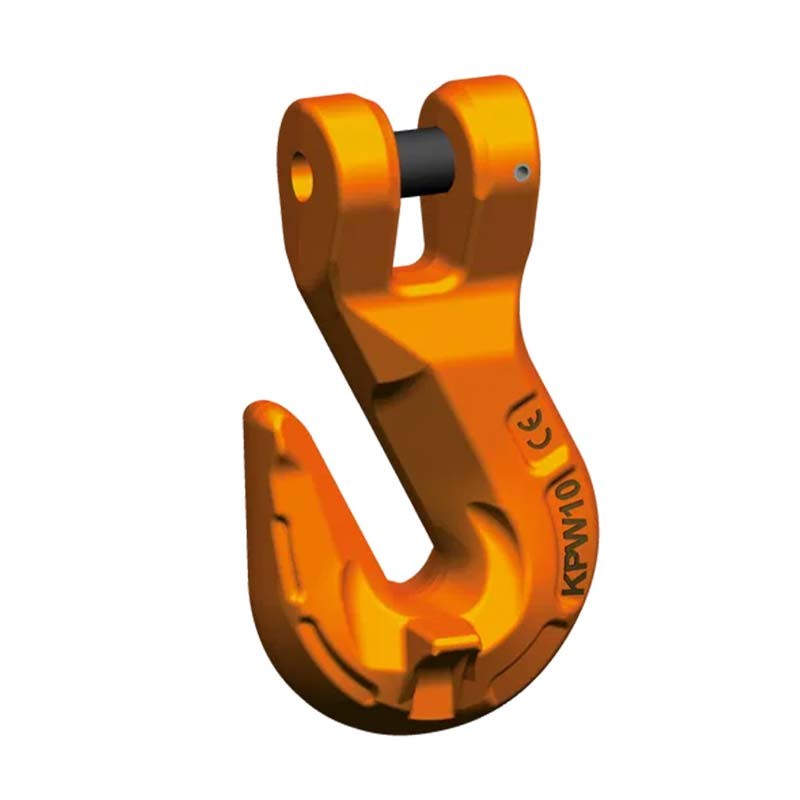

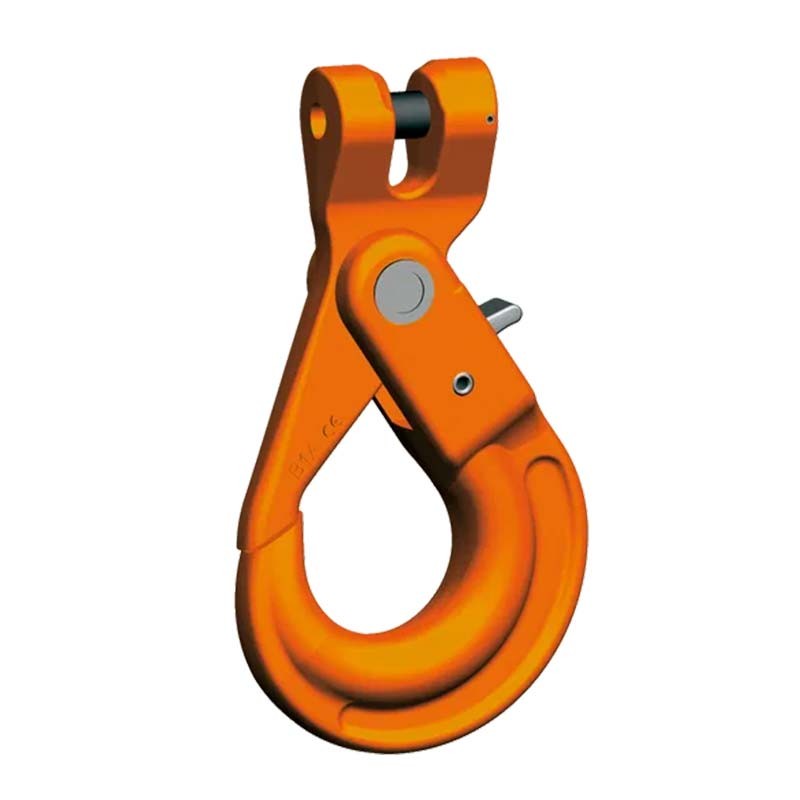

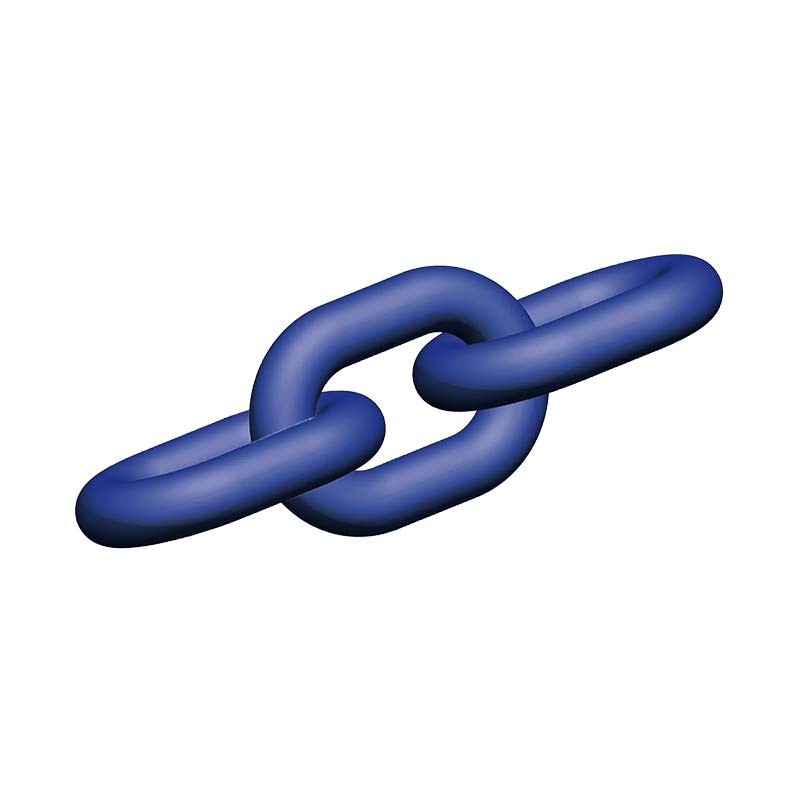

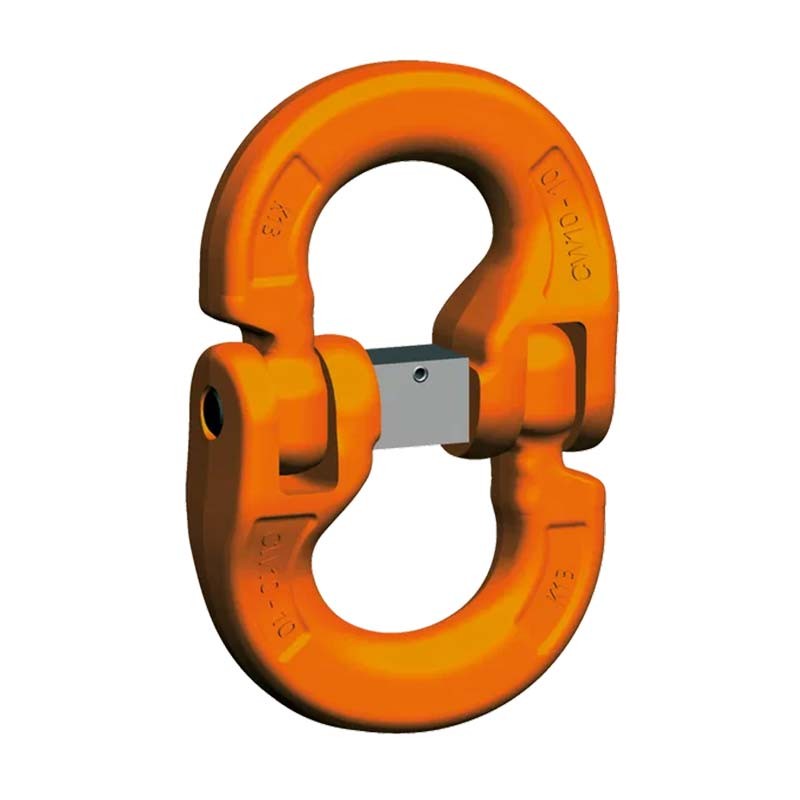

G100 4-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
€139.00
HT
- Standard EN818-4 | CE Certified
- WLL: From 3 Tons to 21 Tons
- Grade 100 Alloy Steel
- Lengths: From 1m to 6m
- High resistance to abrasion and chemicals
- Easy to use and store
- Other lengths available on request
WLL - Ø Chain
Sling lenght
Livraison 24-48 H
| chain | WLL avec β à 0° | WLL β de 0° - 45° WLL β de 45° - 60° |
WLL β de 0° - 45° | WLL β de 0° - 45° WLL β de 45° - 60° |
WLL β à 0° |
|---|---|---|---|---|---|
| pictures |  |
 |
 |
 |
 |
| Ø6 mm | 1,4 Tonnes | 2 Tonnes 1,4 Tonnes |
3 Tonnes | 3 Tonnes 2.12 Tonnes |
2.24 Tonnes |
| Ø8 mm | 2.5 Tonnes | 3.55 Tonnes 2.5 Tonnes |
5,3 Tonnes | 5.3 Tonnes 3.75 Tonnes |
4.16 Tonnes |
| Ø10 mm | 4 Tonnes | 5.6 Tonnes 4 Tonnes |
8 Tonnes | 8 Tonnes 6 tonnes |
6.4 Tonnes |
| Ø13 mm | 6.7 Tonnes | 9,5 Tonnes 6.7Tonnes |
11,2 Tonnes | 14 Tonnes 10 Tonnes |
10.88 Tonnes |
| Ø16 mm | 10 Tonnes | 14 Tonnes 10 Tonnes |
21.2 Tonnes | 21.2 Tonnes 15 Tonnes |
16.48 Tonnes |
