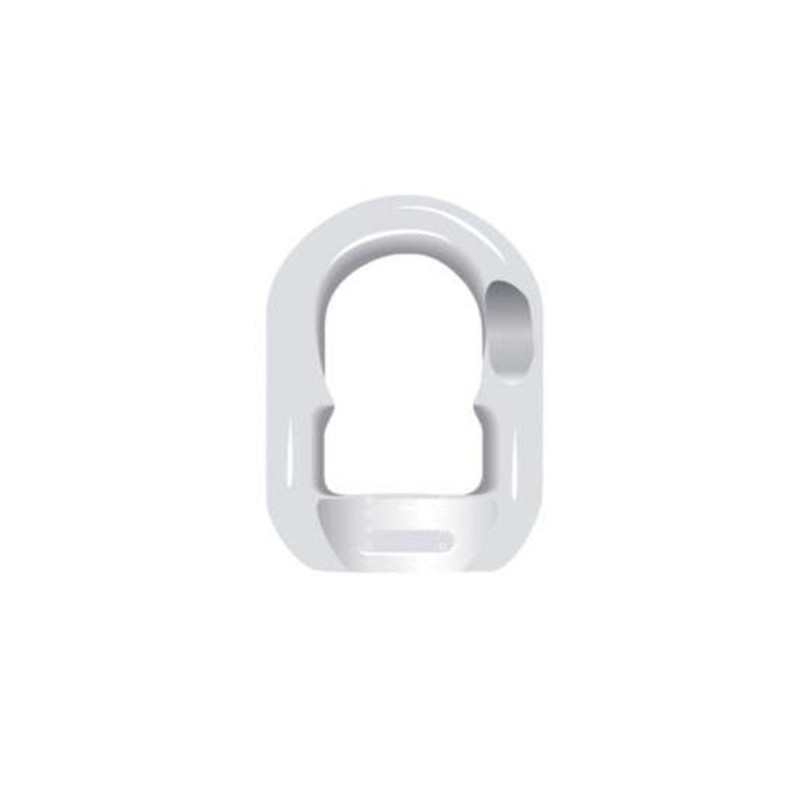

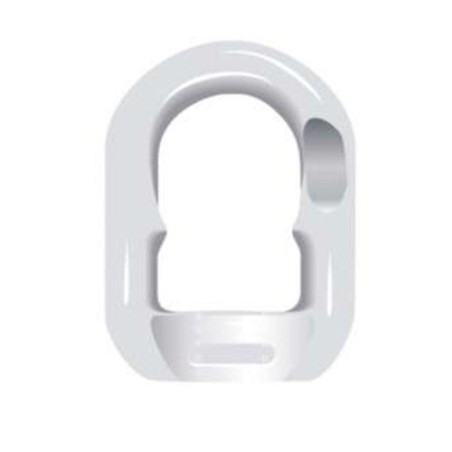

High-Strength Female Eyebolt
€15.60
HT
- WLL from 0.2 to 18 tons
- From M6 x 1.00 to M48 x 5.00
- This lifting ring has a flat surface for inserting a shackle or a thimble
- It features standard ISO threading
- Material: Alloy steel, grade 80, quenched and tempered
- Safety factor: 5 x WLL (Working Load Limit)
- Certificates: 2.1 / 2.2 / 3.1 / MPIb CE
CMU HR

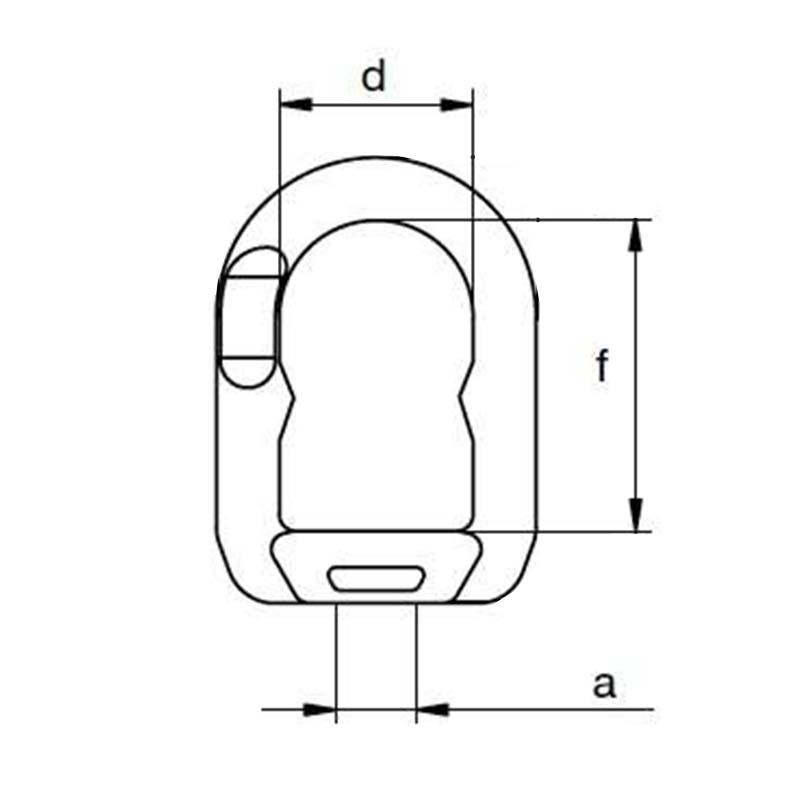

| a (mm) | Wll (t) | f mm | d mm | kg |
|---|---|---|---|---|
| 06 | 0,20 | 36 | 26 | 0,15 |
| 08 | 0,40 | 36 | 26 | 0,15 |
| 10 | 0,70 | 36 | 26 | 0,15 |
| 12 | 1,00 | 48 | 32 | 0,25 |
| 14 | 1,20 | 48 | 32 | 0,25 |
| 16 | 1,50 | 60 | 37 | 0,40 |
| 18 | 2,00 | 60 | 37 | 0,40 |
| 20 | 2,50 | 60 | 37 | 0,40 |
| 22 | 3,00 | 75 | 47 | 0,67 |
| 24 | 4,00 | 75 | 47 | 0,67 |
| 27 | 5,00 | 75 | 47 | 0,67 |
| 30 | 6,00 | 88 | 58 | 1,20 |
| 33 | 7,00 | 88 | 58 | 1,20 |
| 36 | 8,00 | 98 | 70 | 1,50 |
| 39 | 9,00 | 98 | 70 | 1,50 |
| 42 | 10,00 | 98 | 70 | 1,50 |
| 45 | 15,00 | 130 | 84 | 3,00 |
| 48 | 18,00 | 130 | 84 | 3,00 |
