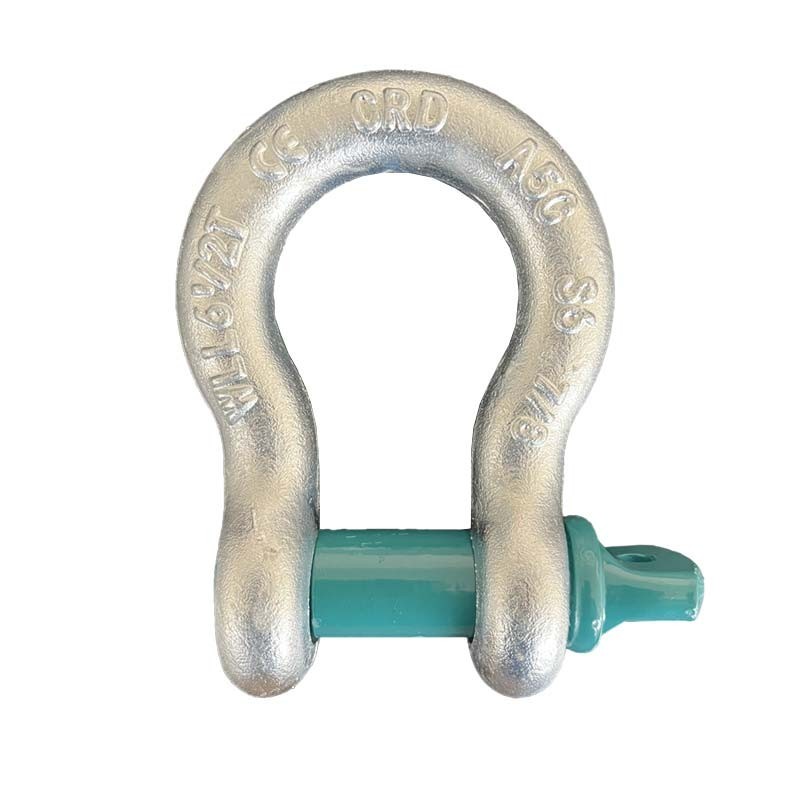

HR Bow Shackle with Screw Pin
HR Bow Shackle with Screw Pin
HR Bow Shackle with Screw Pin
HR Bow Shackle with Screw Pin

HR Bow Shackle with Screw Pin

SKU FCMLAVC0.5 Category shackle
Price: €1.35
HT
  • CE Conformity Certificate
  • WLL available from 0.5 to 9.5 tons
  • Quick (dis)assembly screw axis
WLL
Add to Cart

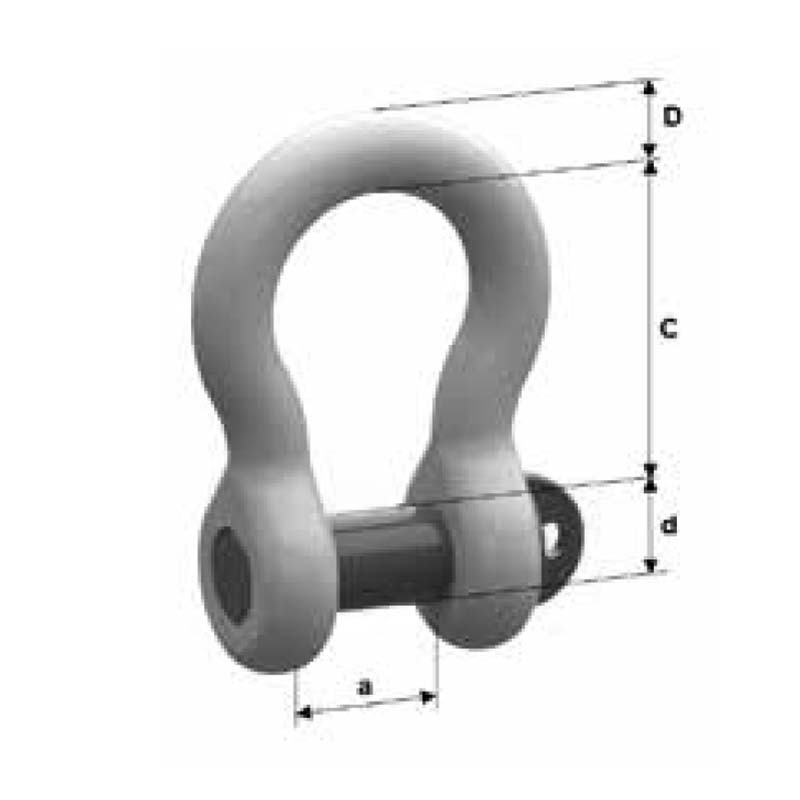

WLL (T) D (mm) d (mm) a (mm) C (mm)
0,33 5 6 10 22
0,5 7 7,9 12,3 27,5
0,75 8 8,4 12,8 30,6
1 10 11 17,5 37
1,5 11 11,6 19,6 40,9
2 12,7 16 20,5 47,5
3,25 18 19 28 60,5
4,75 20,5 22 32 72
6,5 24,5 25 38,5 84
8,5 27,5 28 44,5 95,5
9,5 29 32 46 108
12 32 35 51 119
13,5 35 38 58 133
17 38 42 60,5 146
25 47 50 76,6 178
