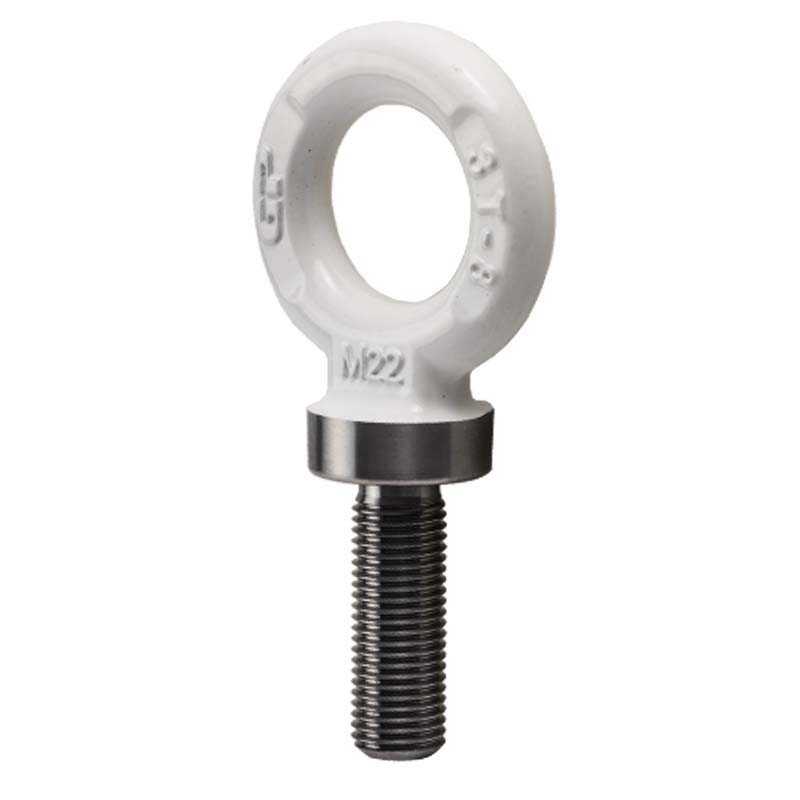

Alloy Steel Ring Bolt
€12.80
HT
- WLL from 0.2 to 36 tons
- Dimensions: From Ø M6 to M64
- Threaded rod length: from 20 mm to 150 mm
- This ring is tapped according to ISO standard
- Material: Alloy steel, grade 80, quenched and tempered
- Safety factor: 5 times the WLL (Working Load Limit)
- Certificates: 2.1 / 2.2 / 3.1 / MPIb CE
CMU HR

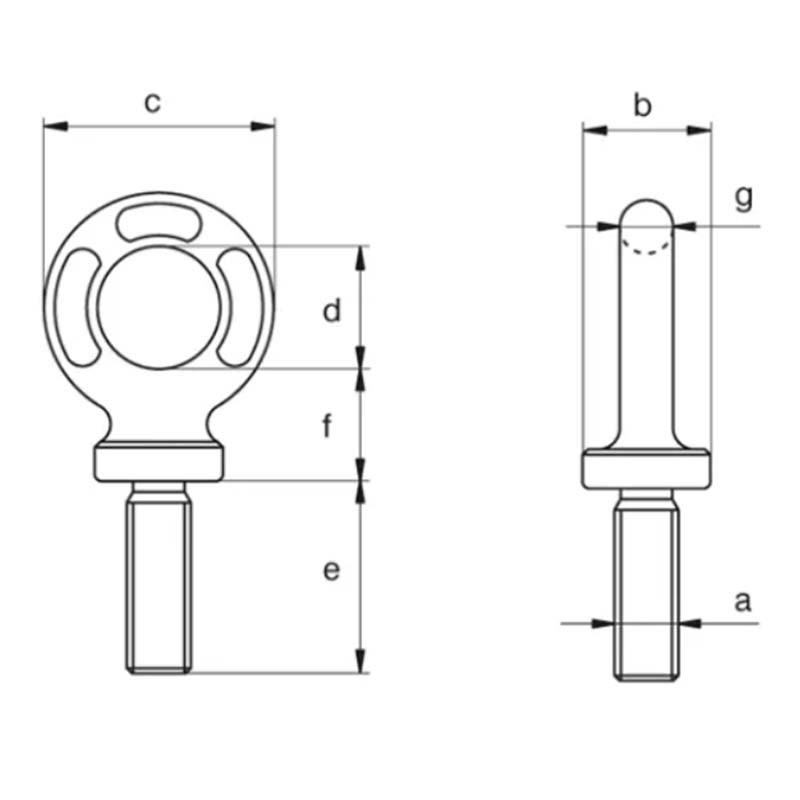

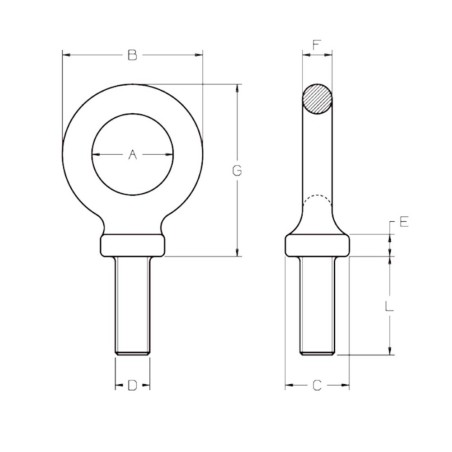

| Metric thread | A | B | C | D | E | F | G | L | Weight(Kg) | Torque(N.m) | WLL(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 19.5 | 35.5 | 20 | 8 | 6 | 8 | 44 | 24 | 0.06 | 8 | 400 |
| 10 | 23 | 43 | 21 | 10 | 7 | 10 | 51 | 28 | 0.08 | 16 | 700 |
| 12 | 29 | 53 | 22 | 12 | 8 | 12 | 64 | 40 | 0.14 | 28 | 1000 |
| 14 | 31.5 | 59.5 | 26 | 14 | 9 | 14 | 72 | 40 | 0.2 | 45 | 1200 |
| 16 | 36 | 64 | 28 | 16 | 10 | 14 | 79 | 51 | 0.3 | 70 | 1500 |
| 18 | 41.5 | 73.5 | 31 | 18 | 11 | 16 | 88 | 53 | 0.42 | 95 | 2000 |
| 20 | 45.5 | 77.5 | 32 | 2012 | 18 | 95 | 56 | 0.5 | 135 | 2500 | 2500 |
| 22 | 50 | 84 | 35 | 22 | 9 | 17 | 98 | 62 | 0.64 | 182 | 3000 |
| 24 | 53 | 94 | 38 | 24 | 12 | 20.5 | 110 | 67 | 0.92 | 230 | 4000 |
| 27 | 59 | 101 | 40 | 27 | 15 | 21 | 120 | 74 | 1.16 | 343 | 5000 |
| 30 | 60 | 109 | 45.5 | 30 | 18 | 24.5 | 132 | 79 | 1.66 | 465 | 6000 |
