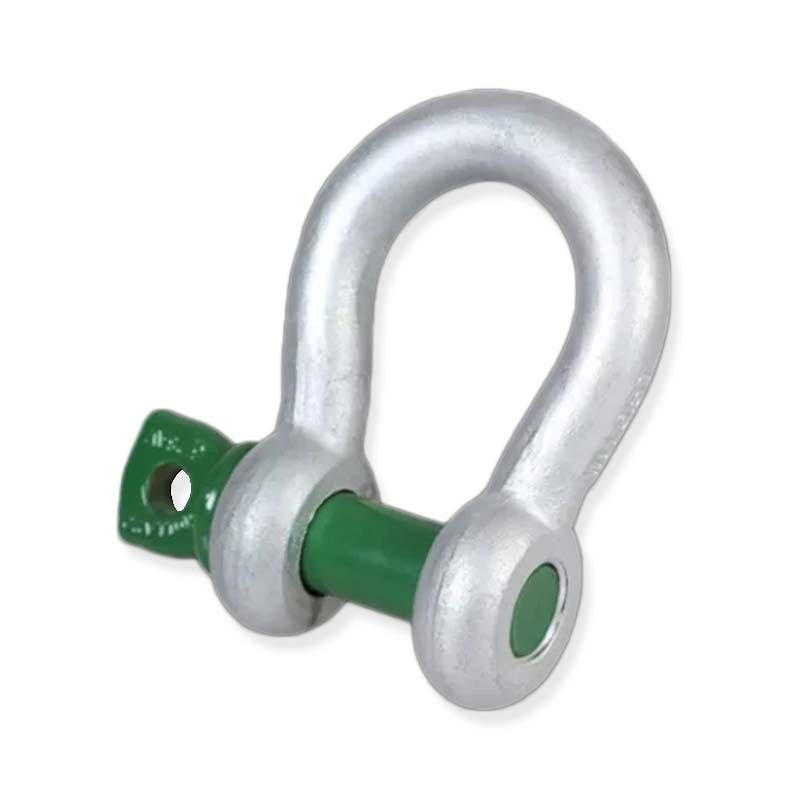

Green Pin® Bow Shackle SC

SKU HVMLAVC0.33 Category shackle
€3.10
HT
  • Screw pin for quick (dis)assembly
  • Galvanization assures long-term durability
  • Suitable for both one-leg and multi-leg systems
  • Conforms to wide range of certifications (e.g. DNV)
  • Superior stock availability of 99%
WLL

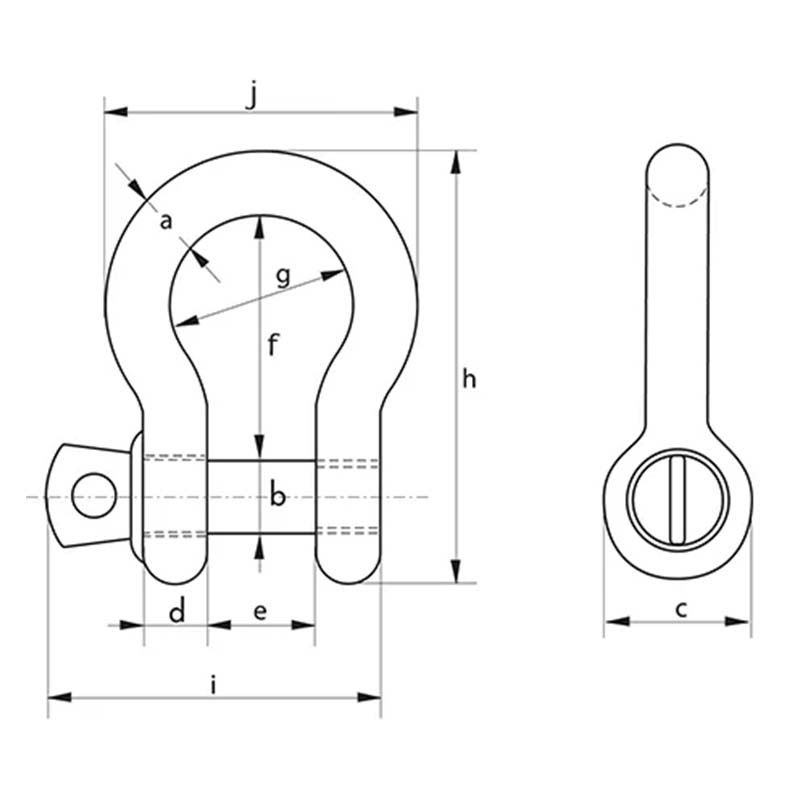

WLL A B C D E F G H I J Weight
0,33 5 6 12 5 9,5 22 16 36 29,5 26 0.02
0,5 7 8 16 7 12 29 20 48 38 34 0.05
0,75 9 10 20 9 13,5 32 22 56 46,5 40 0.1
1 10 11 23 10 17 37 26 64 54 46 0.13
1,5 11 13 25 11 19 43 29 73 59,5 51 0.18
2 13,5 16 34 13 22 51 32 90 73 59 0.36
3,25 16 19 40 16 27 64 43 110 89 75 0.63
4,75 19 22 46 19 31 76 51 129 103 89 1.01
6,5 22 25 52 22 36 83 58 144 119 102 1.5
8,5 25 28 59 25 43 95 68 164 137 118 2.21
9,5 28 32 67 28 47 108 75 186 153 131 3.16
12 32 35 73 32 51 115 83 201 170 147 4.31
13,5 35 38 79 35 57 133 92 227 186 162 5.58
17 38 42 88 38 60 146 99 249 203 175 7.43
25 45 50 104 45 74 178 126 300 243 216 12.5
35 50 57 112 50 83 197 138 332 272 238 17.2
42,5 57 65 132 57 95 222 160 378 310 274 26.1
55 65 70 145 65 105 260 180 433 344 310 37.6
Category shackle
Documentation Manille

Caracteristiques et dimensions
