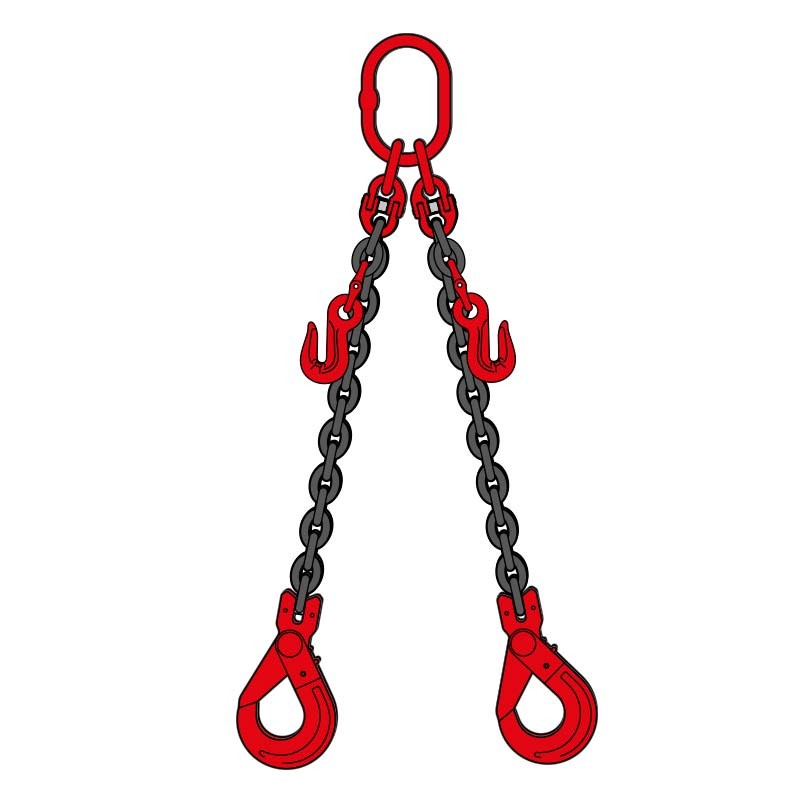

2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
Previous
Next
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch
2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch

2-Leg Chain Sling with Self-Locking Hook and Shortening Clutch

SKU N-8C2VAR06-1M Category Lifting chain
€61.70
HT
  • Standard EN818-4 | CE Certified
  • WLL: From 1.6 Tons to 11.2 Tons
  • Grade 80 Alloy Steel
  • Lengths: From 1m to 6m
  • High resistance to abrasion and chemicals
  • Easy to use and store
  • Other lengths available on request
WLL - Ø Chain

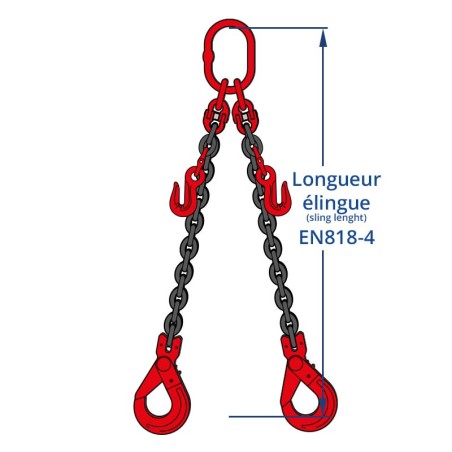

Sling lenght
Livraison 24-48 H
Ø chain(mm) WLL(T) 1 legs WLL(T) 2 legs
β < 45°		 WLL(T) 2 legs
45° < β < 60°		 WLL(T) 4 brins
β < 45°		 WLL(T) 4 legs
45° < β < 60°
6 1.12 1.6 1.12 2.35 1.7
8 2 2.8 2 4.25 3
10 3.15 4.2 3.15 6.7 4.75
13 5.3 7.5 5.3 11.2 8
16 8 11.2 8 17 11.8
20 12.5 17 12.5 26.5 19
22 15 21.2 15 31.5 22.4
26 21.2 30 21.2 45 31.5
32 31.5 45 31.5 67 47.5
Category Lifting chain
Doc Technique ELingue Chaine G80

Caracteristiques et utilisation
