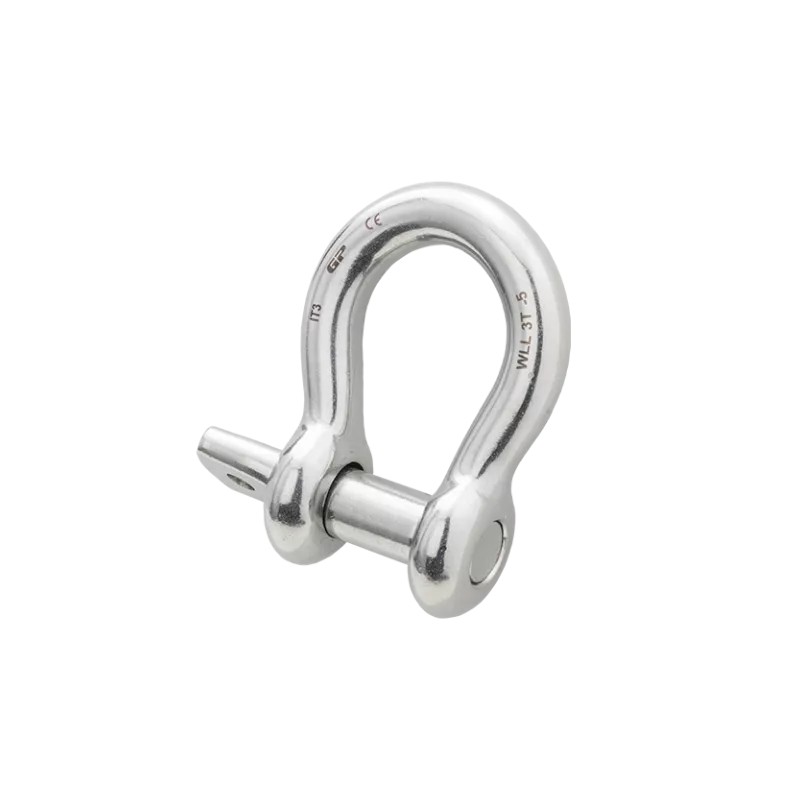

Green Pin® - Bow Shackle S/S
Green Pin® - Bow Shackle S/S
Previous
Next
Green Pin® - Bow Shackle S/S
Green Pin® - Bow Shackle S/S

Green Pin® - Bow Shackle S/S

SKU HVMLVI0.4 Category shackle
€9.65
HT
  • Standard CE
  • WWL 0,4 to 6 tons
  • AISI 316L, grade 5
WLL

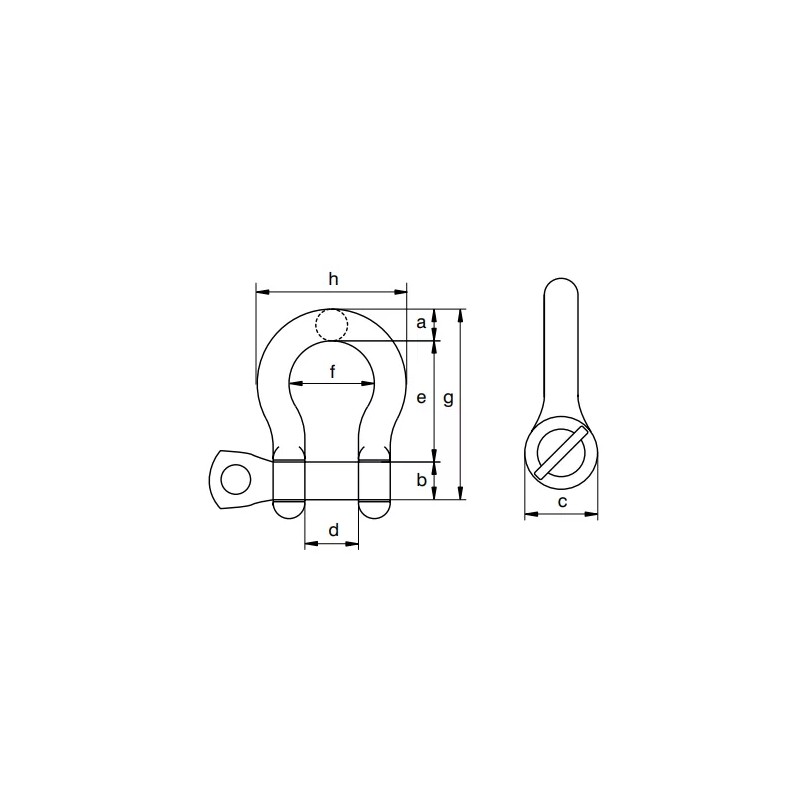

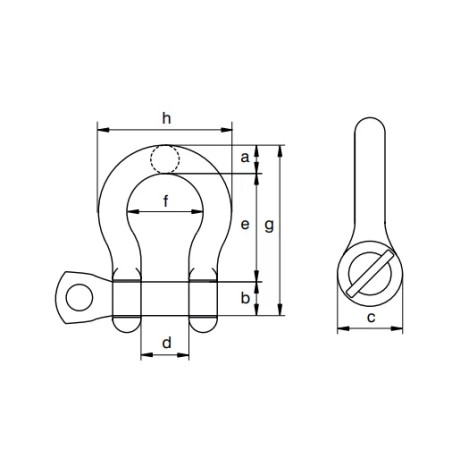

WLL (T) A B C D E F G H Weight
0,4 8 8 16 16 32 25 56 41 0.06
0,6 10 10 19 20 40 28 67 48 0.12
0,9 12 12 24 25 48 36 79 59 0.2
1,5 13 16 31 24 52 35 87 60 0.32
2,5 16 20 38 28 64 42 108 71 0.58
3 19 22 44 32 72 50 125 87 0.96
4 22 25 50 37 74 60 145 101 1.46
6 25 30 57 40 94 67 157 115 2.09
