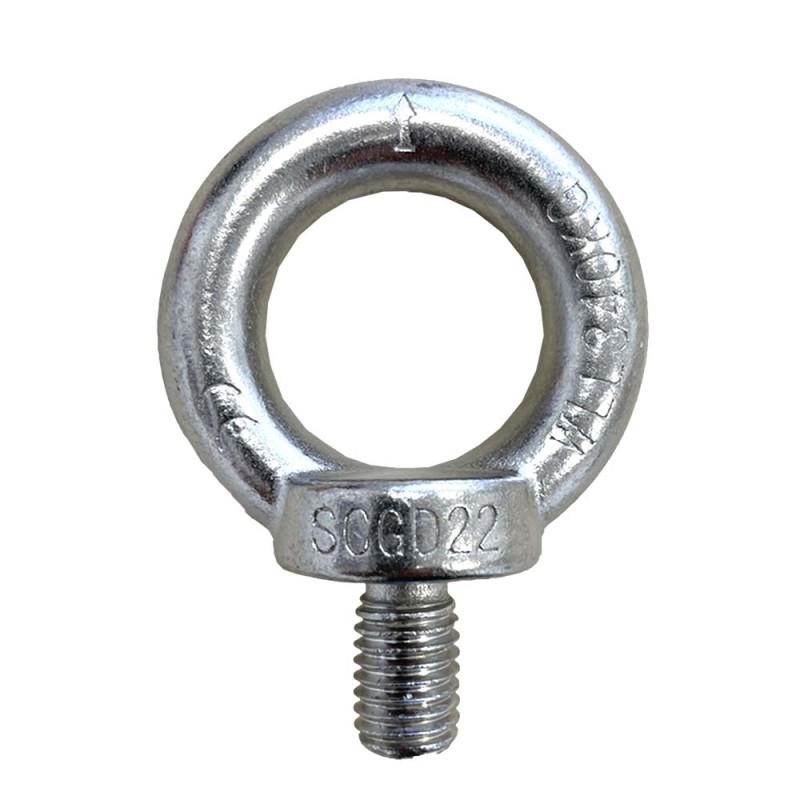

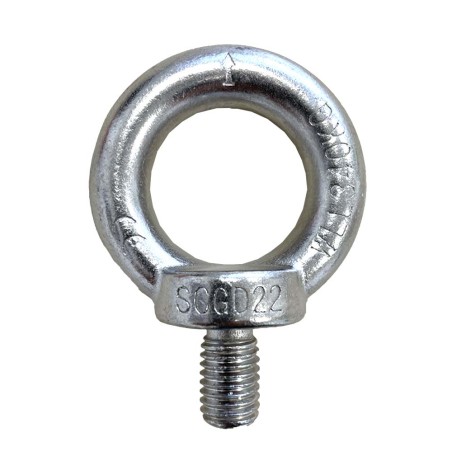

Male Stainless Steel Lifting Eye
Price:
€4.95
HT
- DIN 580 CE standard | Safety factor 5
- Available diameter from M6 to M24 mm
- Corresponding WLL from 75 to 1,800 kg
- Certificate of conformity supplied
- Equipment subject to periodic inspection
Filetage - CMU (Kg)

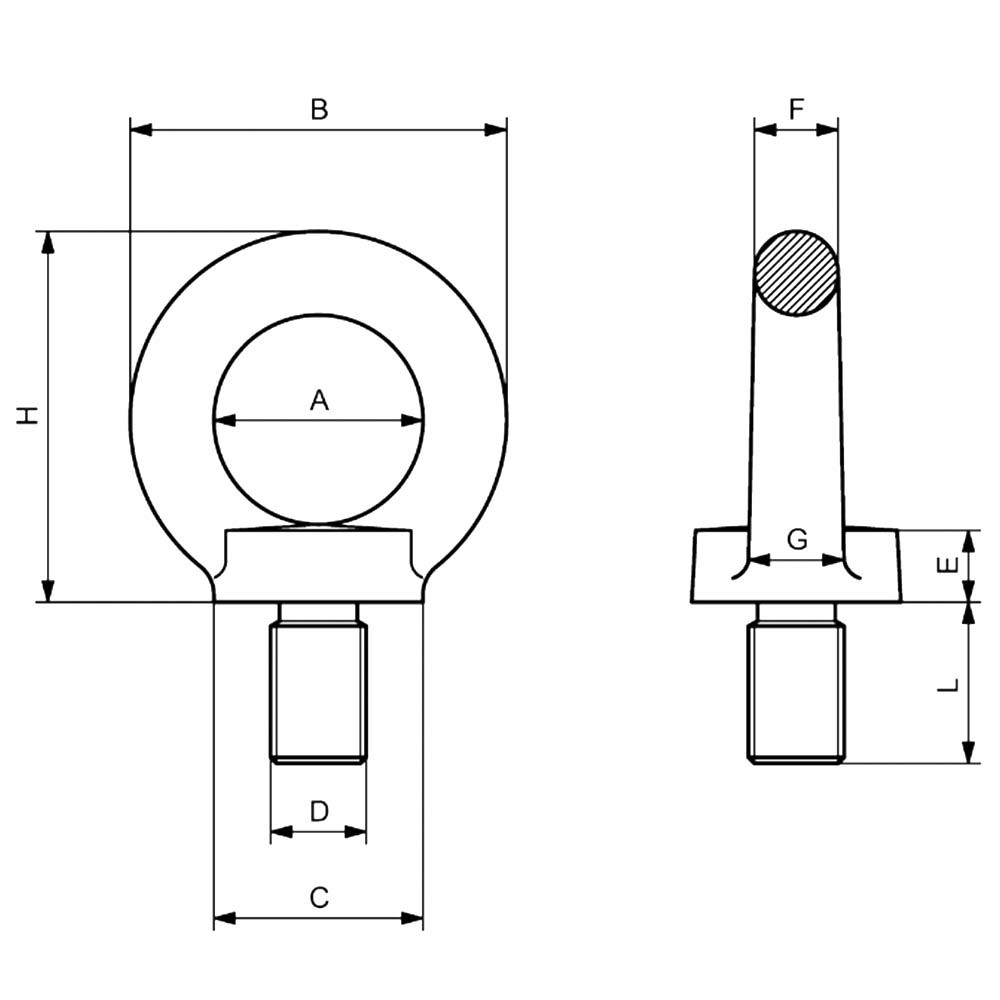

| metric | A | B | C | E | F | G | H | L | WLL à 0° | WLL à 45° | WLL à 90° |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M 6 | 20 | 36 | 20 | 6 | 8 | 10 | 36 | 13 | 75 | 3,5 | 0,06 |
| M 8 | 20 | 36 | 20 | 6 | 8 | 10 | 36 | 13 | 140 | 8 | 0,06 |
| M 10 | 25 | 45 | 25 | 8 | 10 | 12 | 45 | 17 | 230 | 16 | 0,11 |
| M 12 | 30 | 54 | 30 | 10 | 12 | 14 | 53 | 20,5 | 340 | 28 | 0,18 |
| M 14 | 35 | 63 | 35 | 12 | 14 | 16 | 62 | 27 | 490 | 45 | 0,27 |
| M 16 | 35 | 63 | 35 | 12 | 14 | 16 | 62 | 27 | 700 | 70 | 0,28 |
| M 18 | 40 | 72 | 40 | 14 | 16 | 19 | 71 | 30 | 850 | 95 | 0,44 |
| M 20 | 40 | 72 | 40 | 14 | 16 | 19 | 71 | 30 | 1200 | 135 | 0,45 |
| M 24 | 50 | 90 | 50 | 18 | 20 | 24 | 90 | 36 | 1800 | 230 | 0,74 |
