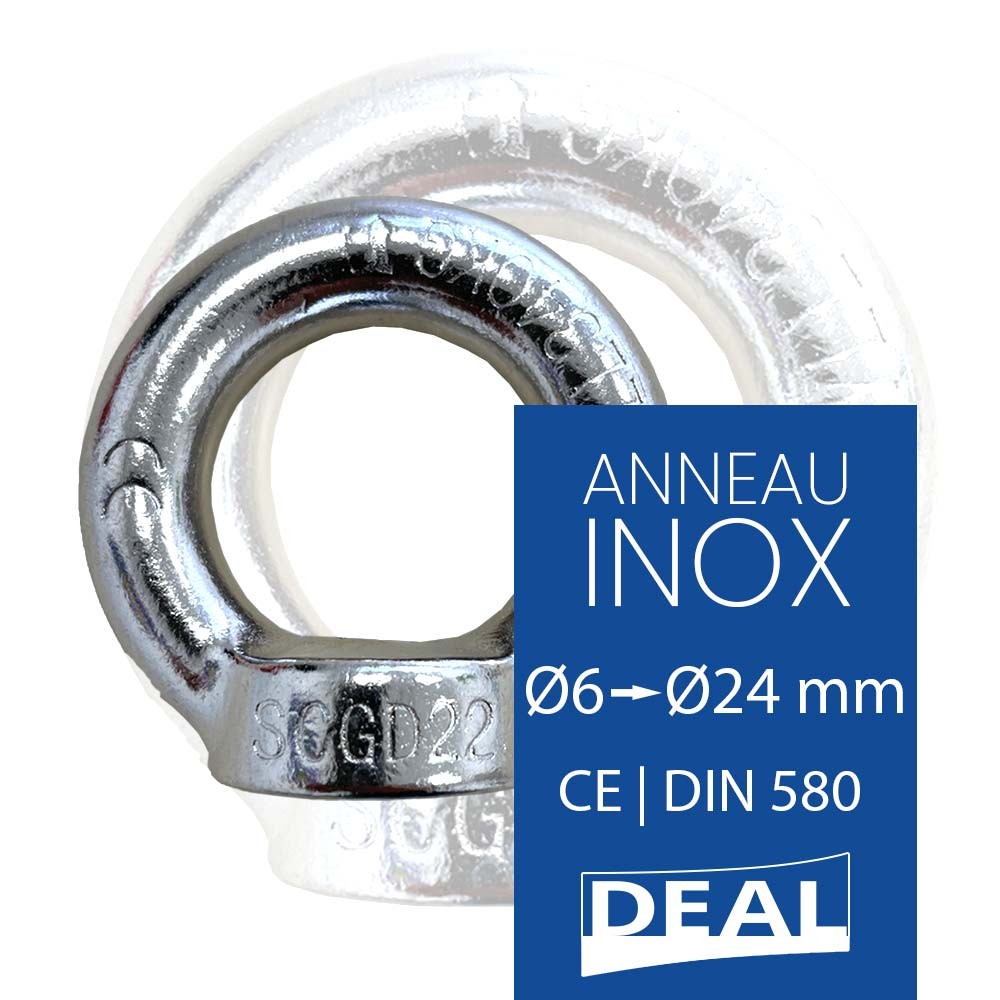

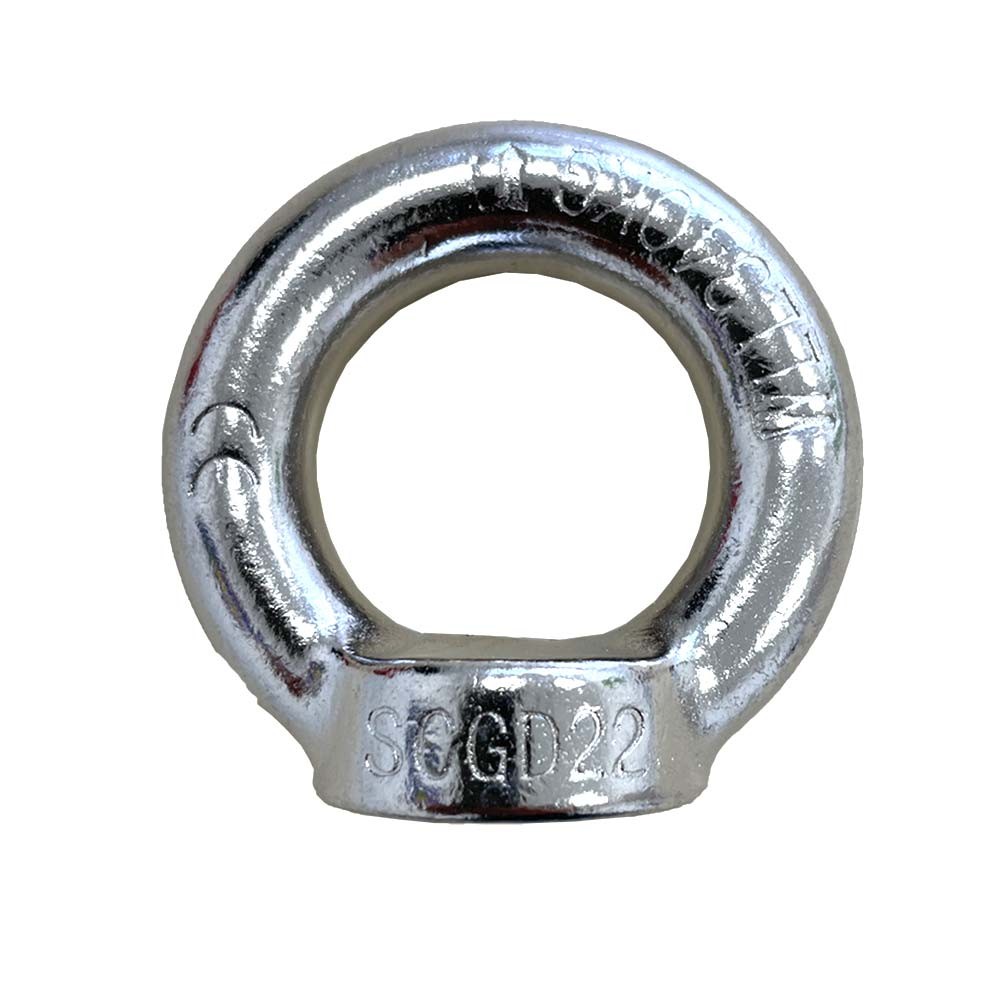

Female Stainless Steel Lifting Eye
Price:
€4.60
HT
- DIN 580 CE standard | Safety factor 5
- Available diameter from M6 to M24 mm
- Corresponding WLL from 75 to 1,800 kg
- Certificate of conformity supplied
- Equipment subject to periodic inspection
Filetage - CMU (Kg)

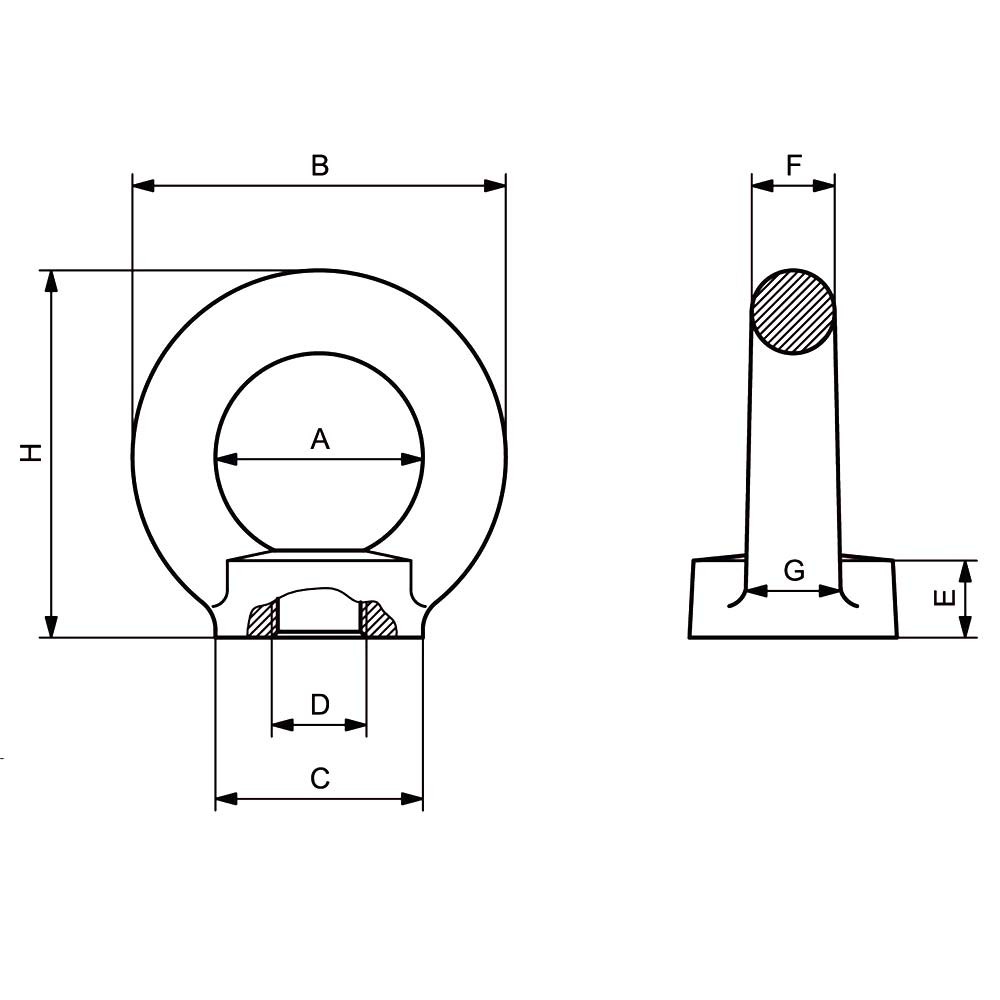

CMU en kilogramme et dimensions en millimètre
| Caractéristiques | A | B | C | E | F | G | H | 0° WLL | 45° WLL | 90° WLL | N.m | weight Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 6 | 20 | 36 | 20 | 8,5 | 8 | 10 | 36 | 75 | 55 | 38 | 3,5 | 0,05 |
| M 8 | 20 | 36 | 20 | 8,5 | 8 | 10 | 36 | 140 | 100 | 70 | 8 | 0,05 |
| M 10 | 25 | 45 | 25 | 10 | 10 | 12 | 45 | 230 | 170 | 115 | 16 | 0,09 |
| M 12 | 30 | 54 | 30 | 11 | 12 | 14 | 53 | 340 | 240 | 170 | 28 | 0,16 |
| M 14 | 35 | 63 | 35 | 13 | 14 | 16 | 62 | 490 | 350 | 245 | 45 | 0,24 |
| M 16 | 35 | 63 | 35 | 13 | 14 | 16 | 62 | 700 | 500 | 350 | 70 | 0,24 |
| M 18 | 40 | 72 | 40 | 16 | 16 | 19 | 71 | 850 | 600 | 425 | 95 | 0,37 |
| M 20 | 40 | 72 | 40 | 16 | 16 | 19 | 71 | 1200 | 860 | 600 | 135 | 0,36 |
| M 22 | 50 | 90 | 50 | 20 | 20 | 24 | 90 | 1400 | 1000 | 700 | 182 | 0,73 |
| M 24 | 50 | 90 | 50 | 20 | 20 | 24 | 90 | 1800 | 1290 | 900 | 230 | 0,72 |
| M 30 | 60 | 108 | 65 | 25 | 24 | 28 | 109 | 3200 | 2300 | 1600 | 465 | 1,32 |
