Green Pin G-6411 Closed Spelter Socket | For Wire Rope Ø 6 to 48 mm

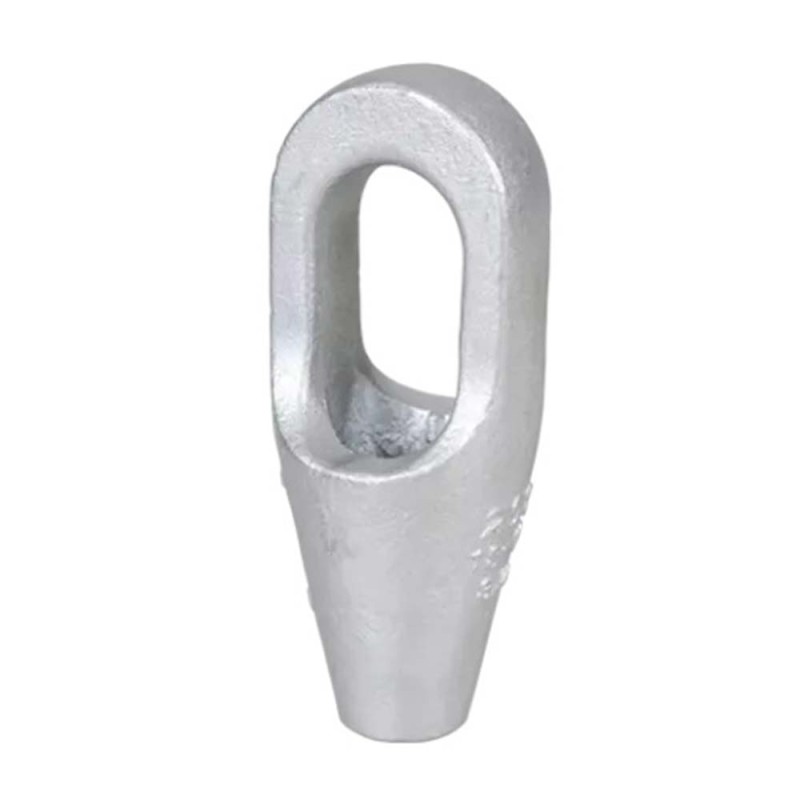

G-6411 Green Pin® Closed Spelter Socket

SKU SKGCS007 Category Wire Rope Accessories

€63.60

Professional wire rope socketing service available in our workshop
Hot-dip galvanized high-strength steel
Suitable for wire ropes from Ø6–7 mm to Ø43–48 mm
Minimum breaking load from 8 to 225 tonnes

Ø du câble Douille

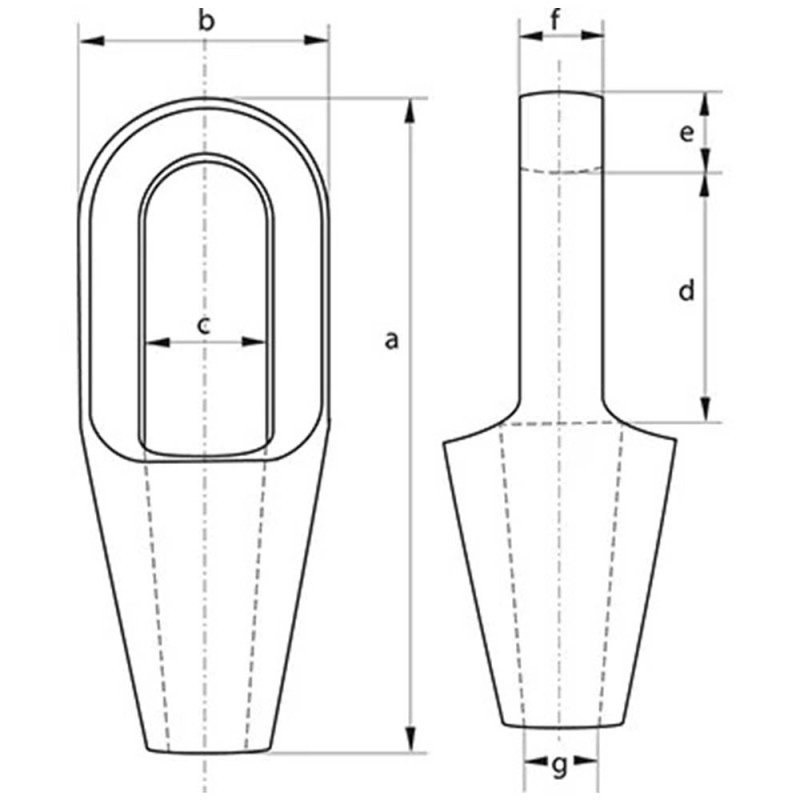

Type (mm)	Rupture min T	Ø cable (mm)	a	b	c	d	e	f	g	Poids
296	8	6 -8	101	37	22	40	11	13	9	0.26
297	12	8 10	119	43	25	48	14	17,5	12	0.5
298	20	11-13	140	52	30	58	18	23,5	15	0.72
299	25	14 - 16	162	68	37	66	21	26	17,5	1.47
200	45	18 - 19	194	76	42	78	27	32	21,5	2.24
201	70	20 - 22	224	92	47	90	33	38	24	4.2
204	85	23 - 26	253	104	57	103	36	44	28	6.03
207	105	27 - 30	282	114	63	116	39	51	32	7.85
212	136	31 - 36	312	127	70	130	43	57	38	10.8
215	150	37 - 39	358	136	79	155	51	63	41	13.6
217	170	40 - 42	390	146	83	171	54	70	44	17
219	225	43 - 48	443	171	93	198	55	76	51	26

What Is Wire Rope Socketing?

Wire rope socketing is a manufacturing process used to create an extremely strong termination at the end of a steel wire rope.

A Closer Look at the Socketing Process

This technique permanently secures the wire rope into an open spelter socket, closed spelter socket or socket with clevis, creating an anchorage point capable of safely transmitting high tensile loads.

Socketing is primarily used for wire ropes employed in lifting, material handling and pulling applications. It is commonly found on cranes, winches, overhead cranes, industrial equipment, offshore installations and marine applications.

Unlike a simple swaged termination, socketing provides a highly efficient connection, making it particularly suitable for heavy loads and demanding operating conditions. The process begins by preparing the end of the wire rope. The strands and wires are opened and separated to form a broomed end.

The prepared end is then inserted into the socket. The socket is filled with a specialised socketing resin or, depending on the process used, with a molten metal alloy. Once the compound has cured, the wires are permanently locked inside the socket. This creates an exceptionally strong termination that efficiently transfers tensile loads while preventing the wire rope from slipping.

Deal – Your Wire Rope Socketing Specialist

Wire rope socketing must be carried out in a specialised workshop by experienced technicians who understand the correct preparation of the wire rope, accurate positioning of the socket and proper application of the socketing resin. Poor preparation or incorrect mixing can significantly reduce the strength of the termination.

At Deal Levage, we manufacture socketed wire rope assemblies directly in our workshop. We supply ready-to-use assemblies tailored to your technical requirements and designed to meet the demands of professional lifting applications. Feel free to contact us for more information or a quotation.
