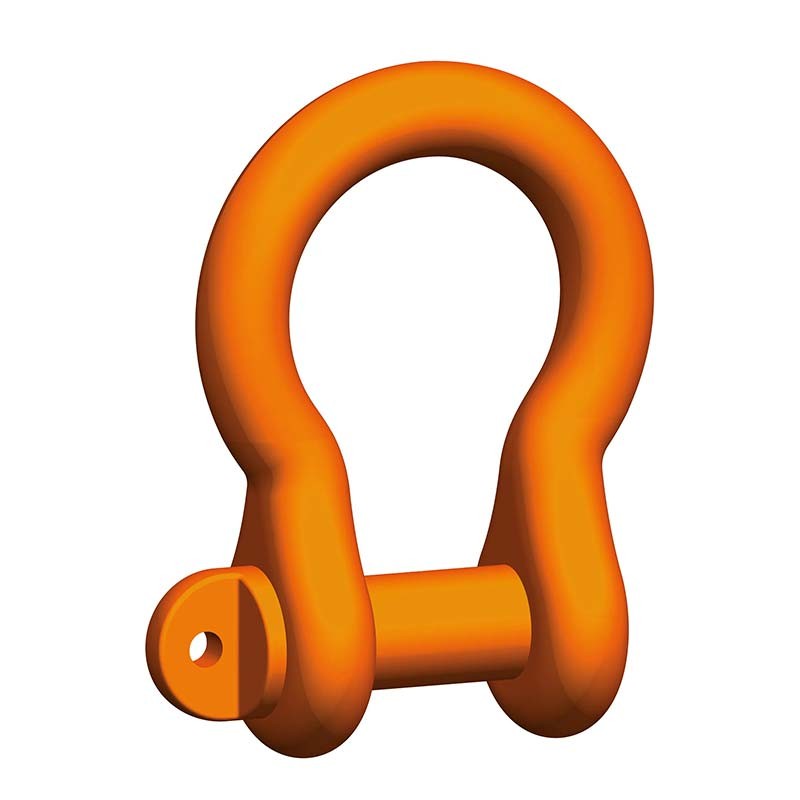

Pewag Bow Shackle
- Standard EN13889
- High-strength steel
- WLL and CE marked | Grade 100
- WLL available from 2.5 to 10 T

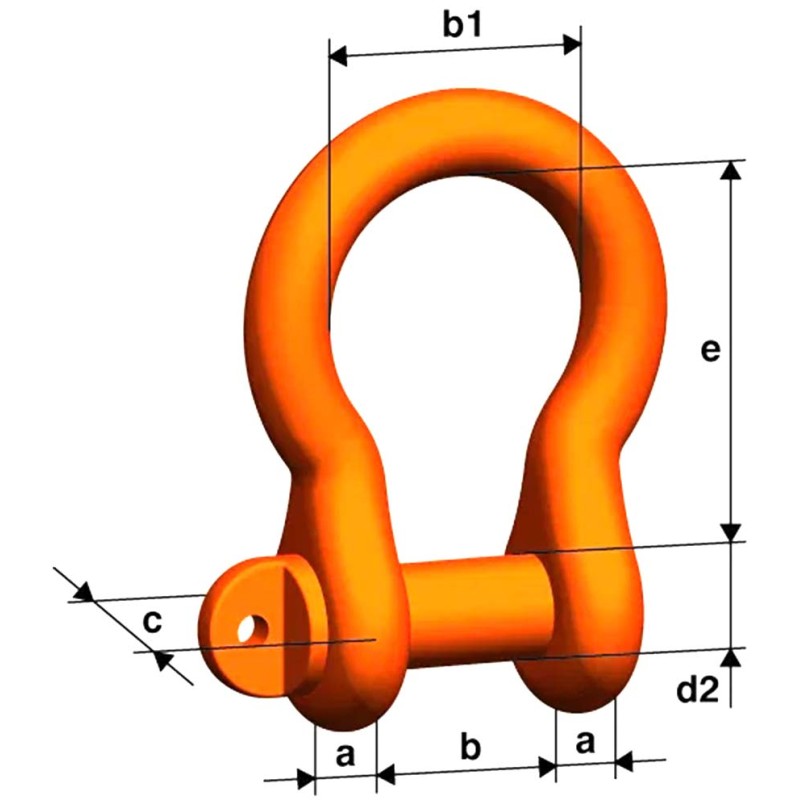

| CMU (Kg) | e | b | b1 | a | c | d2 | poids (Kg) |
|---|---|---|---|---|---|---|---|
| 2500 | 51 | 22 | 32 | 13 | 34 | 16 | 0,46 |
| 4000 | 64 | 27 | 43 | 16 | 40 | 19 | 0,85 |
| 6700 | 76 | 31 | 51 | 19 | 46 | 22 | 1,27 |
| 10000 | 95 | 43 | 68 | 25 | 59 | 28 | 2,9 |
