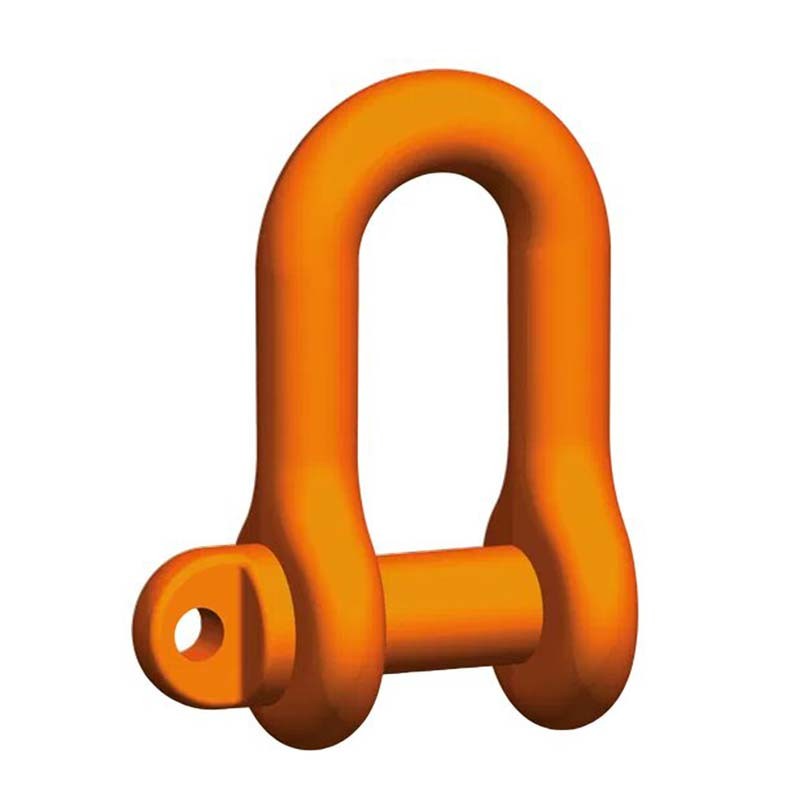

Pewag® Dee Shackle
- WLL 1 to 10 T
- Material : bow and pin high tensile steel, Grade 6, quenched and tempered
- Safety factor : MBL equals 6 x WLL
- Standard EN 13889

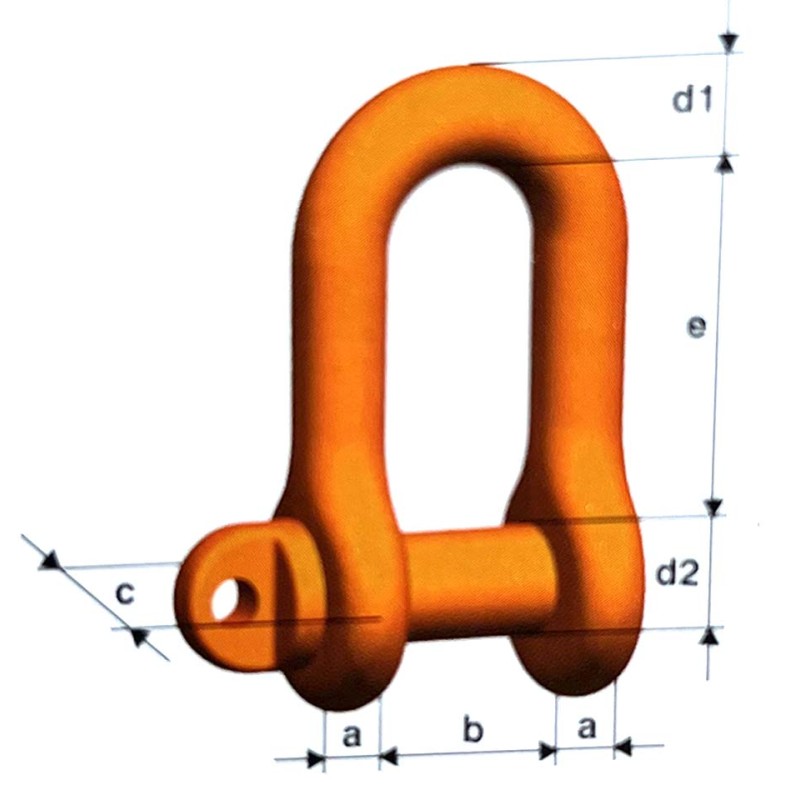

| WLL(Kg) | e | b | a | d1 | c | d2 | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| 1000 | 24 | 11 | 7 | 8 | 16 | 8 | 0,11 |
| 1400 | 30 | 14 | 8 | 10 | 20 | 10 | 0,2 |
| 2500 | 36 | 17 | 10 | 12 | 24 | 12 | 0,41 |
| 4000 | 49 | 21 | 13 | 15 | 32 | 16 | 0,61 |
| 6700 | 61 | 27 | 17 | 19 | 40 | 20 | 1,42 |
| 10000 | 73 | 33 | 21 | 23 | 48 | 24 | 2,62 |
