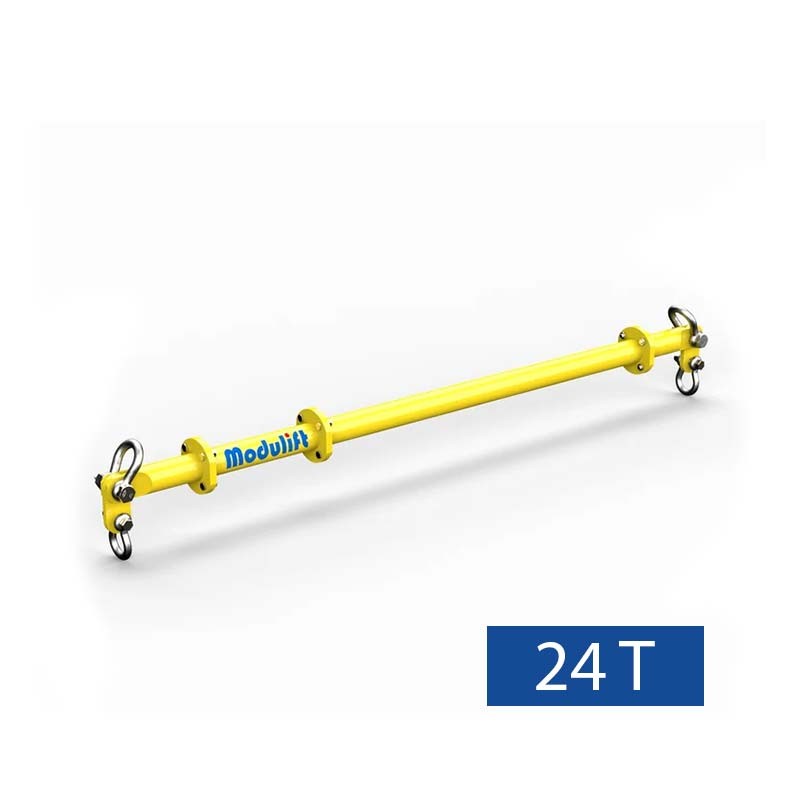

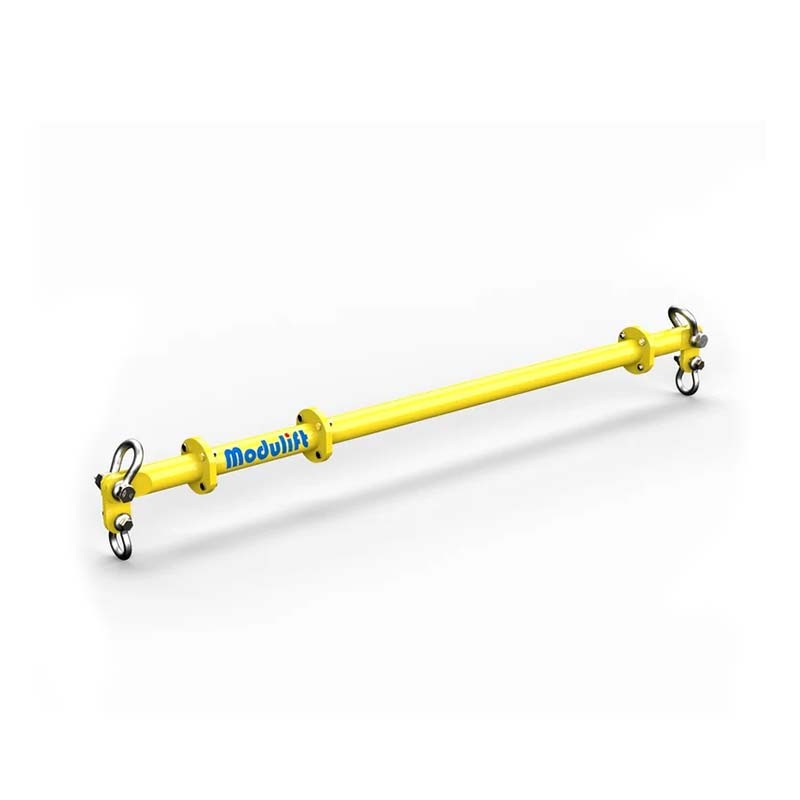

Modulift Mod24 Lifting Beam
Price:
€2,550.00
HT
Modular spreader beam
- Working Load Limit (WLL): 24 tonnes
- Maximum span: 1 to 8 meters
- Standard EN 13155 | Machinery Directive 2006/42/EC
- Supplied with 2 x 12T bow shackles and 2 x 17T shackles
- Deal authorised distributor of Modulift by Pewag
- FREE SHIPPING

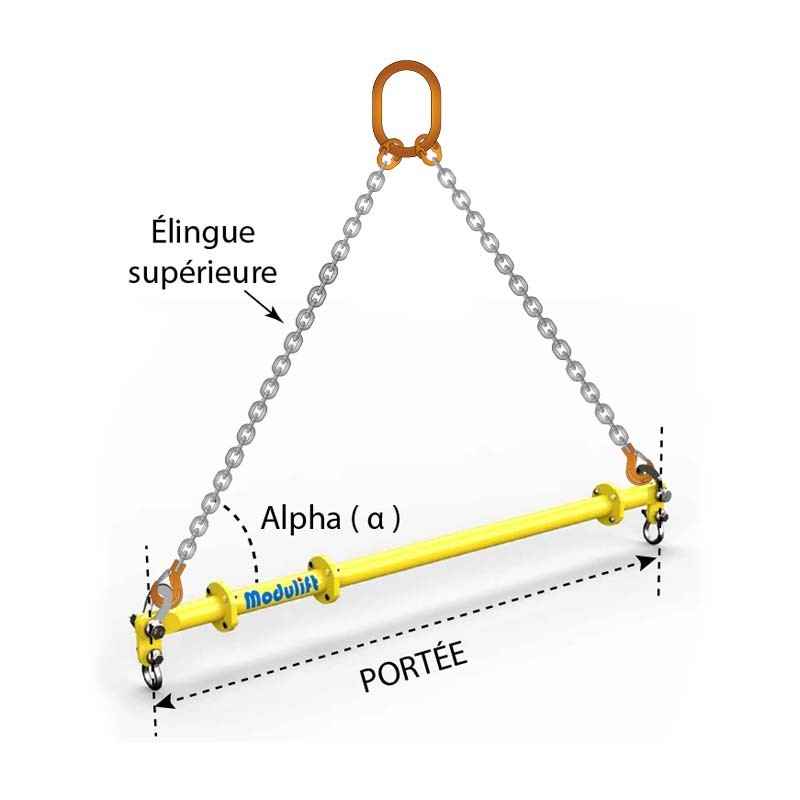

lenght (m) - WLL (T), Alpha 45°
Assembly of a Modulift Spreader Beam
Each MOD® spreader beam is supplied with the following components: the selected struts, two end units, two drop links, as well as standard fastening hardware (nuts and bolts). Slings and shackles can also be supplied as optional extras at an additional cost.
Additional interchangeable struts can be bolted between the end units to extend or shorten the spreader beam, allowing it to be reused for different spans.
Available in various sizes, from MOD® 6 to MOD® 1100/2000, all Modulift spreader beams are DNV Type Approved for capacities up to 2000 tonnes.
Watch the video to learn how to safely assemble a Modulift spreader beam.
Caractéristiques des éléments Mod 24
| Part Ref. | Description | Weight/Item |
|---|---|---|

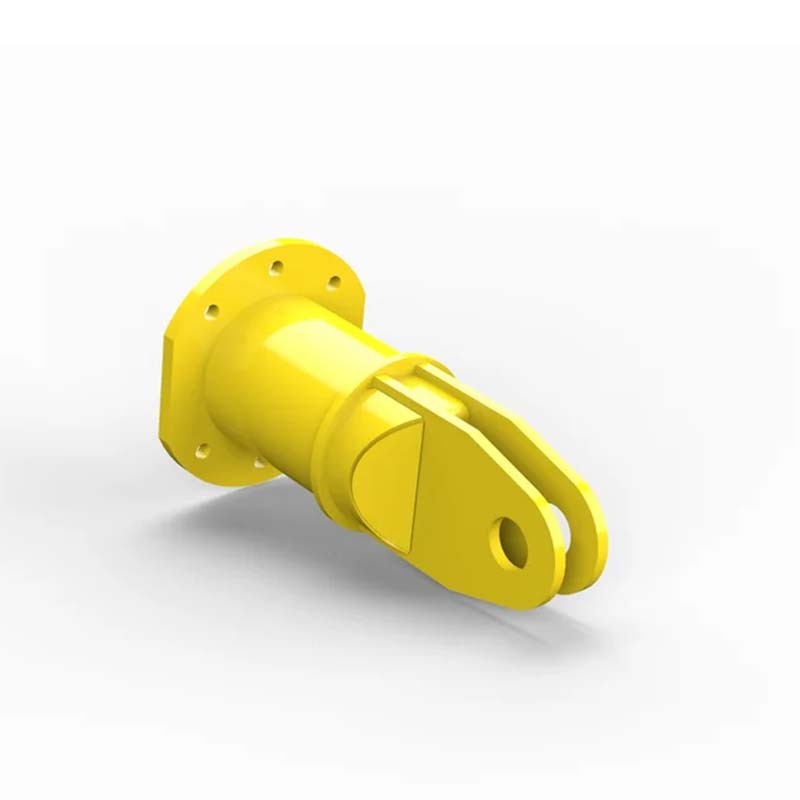

| P1 | End Unit | 17kg |

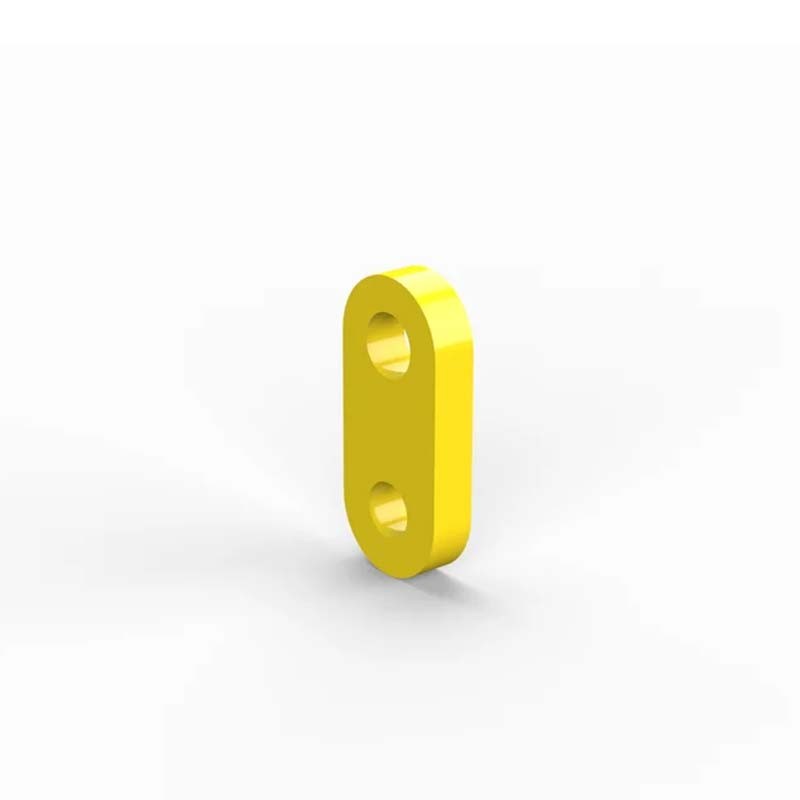

| P2 | Drop Link | 5kg |

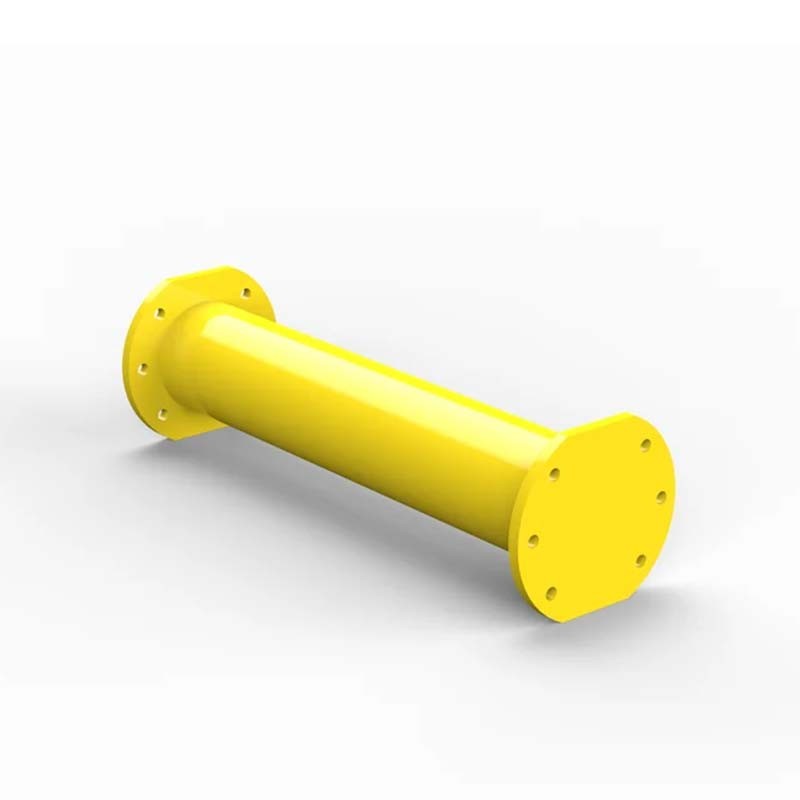

| P3 | 2m Strut | 41kg |
| P4 | 1m Strut | 24kg |
| P5 | 0.5m Strut | 16kg |
| P6 | 17t Shackle | 8kg |
| P7 | 12t Shackle | 5kg |
| P8 | M20 x 50, Grade 8.8 HT Bolts, Nuts & Washers | |
