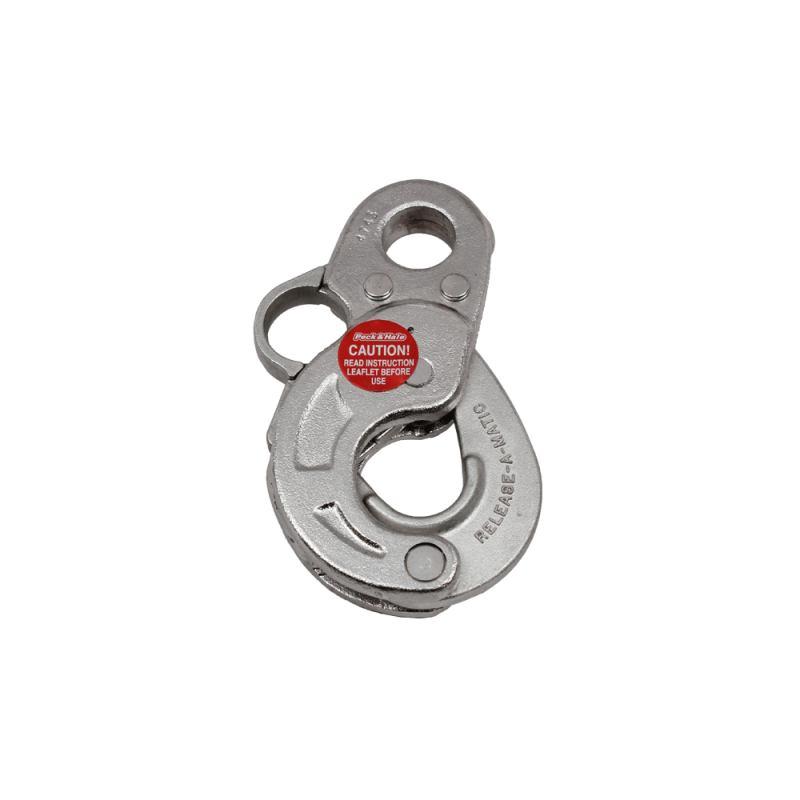

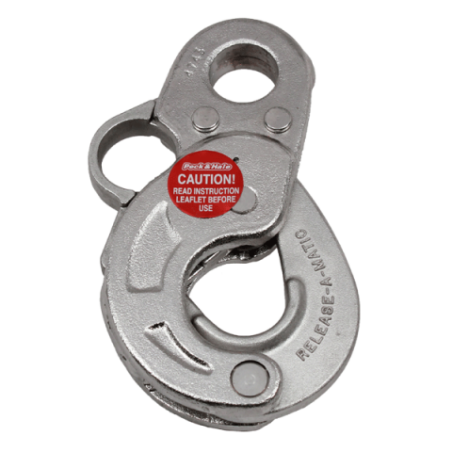

Peck & Hale Release Hook

Category Marine Equipment

€1,085.00

For load release
CE certified
For release under load
High-strength carbon steel

WLL

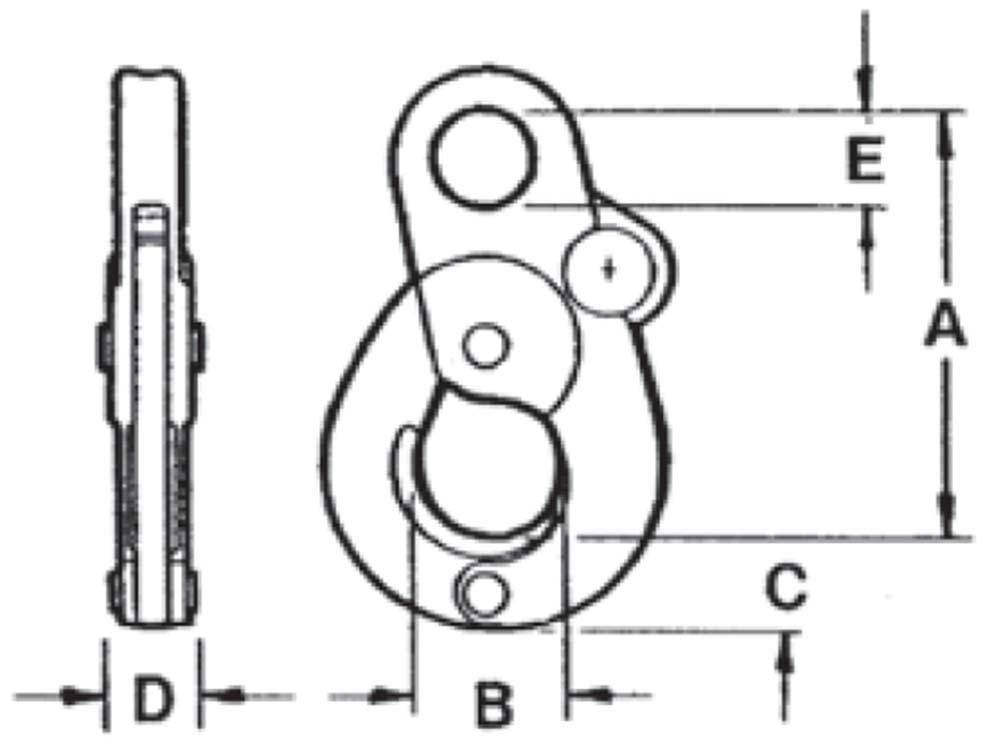

Dimensions of the Peck & Hale Release Hook

Ref	WLL Kg	MBL Kg	Weight	A	B	C	D	E
H44-3	2000	8000	0.9	114	28	22.9	24.1	24.1
H44-9	8000	32500	5.4	178	55	41.9	50.8	38.1

Release Force Required

44-3 WLL 2 000 Kg

To unlock the release system without load, a force of 6.8 kg, equivalent to approximately 68 newtons, is required. With a load of 1,590 kg, a force of 36 kg is required to allow the system to unlock.

H44-9 WLL 9 000 Kg

To unlock the release system without load, a force of 15.8 kg, equivalent to approximately 158 newtons, is required.With a load of 1,590 kg, a force of 54 kg is required to allow the system to unlockMBL

Operation of the release hook

These release hooks are designed to allow simple and reliable release under load. The mechanism can be operated directly by an operator.

For applications requiring a greater safety distance, the release ring can be connected to a rope or a thin cable, allowing remote release. This solution improves operator safety during release operations under load.

Material: high-strength steel

This hook is made of carbon steel, a material known for its high mechanical strength and robustness in industrial environments. The steels used in lifting equipment are selected for their ability to withstand heavy loads while maintaining good mechanical properties, including:
