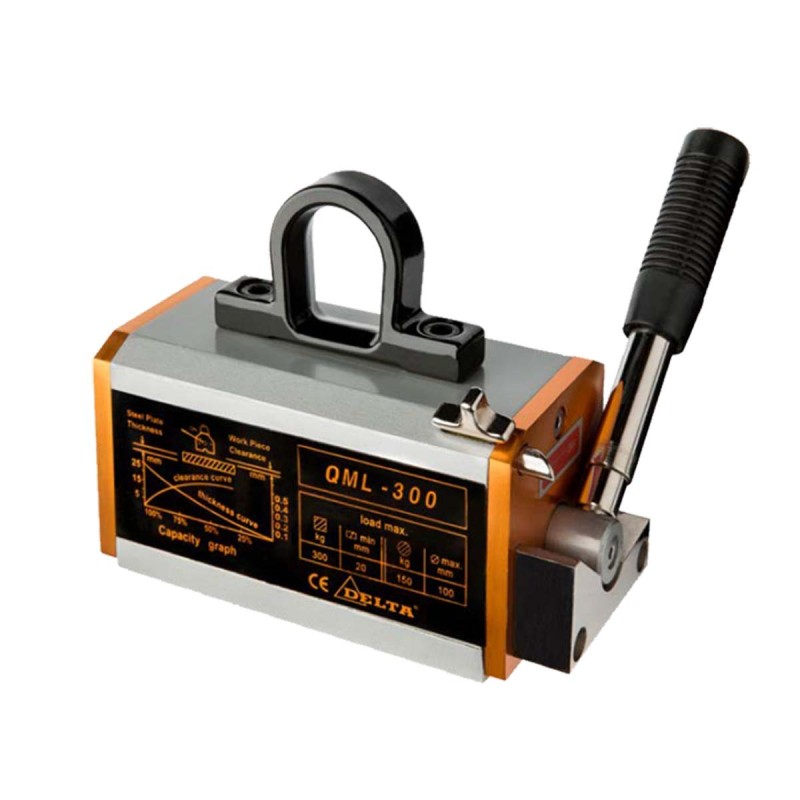

Magnetic carrier
Price:
€270.00
HT
- Suitable for lifting and handling steel plates, -blocks or -pipes
- Magnetic field is produced by turning the handle>/li> Premium features:
- Steel block protects the lever from shocks
- More stability due to fixed suspension eye
- Safe handling by unlocking on the housing (instead of at the lever)
- 50% round material capacity on all models
- Complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions
WLL

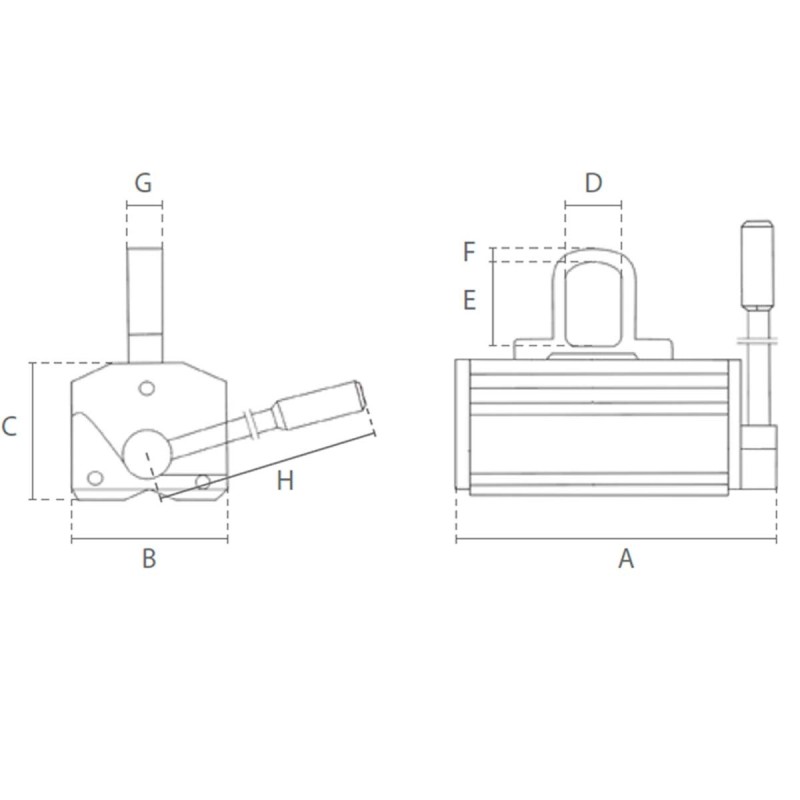

| Flat part (T) | Round Part (T) | Ep min plaque acier (mm) | weight (Kg) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.1 | 0.05 | 15 | 3 | 137 | 62 | 66 | 21 | 32 | 8 | 15 |
| 0.3 | 0.15 | 25 | 11 | 199 | 90 | 95 | 38 | 50 | 11 | 22 |
| 0.6 | 0.3 | 30 | 21 | 263 | 115 | 107 | 42 | 58 | 13 | 25 |
| 1 | 0.5 | 40 | 42 | 303 | 150 | 147 | 50 | 64 | 18 | 29 |
| 2 | 1 | 55 | 105 | 417 | 190 | 195 | 56 | 76 | 21 | 37 |
