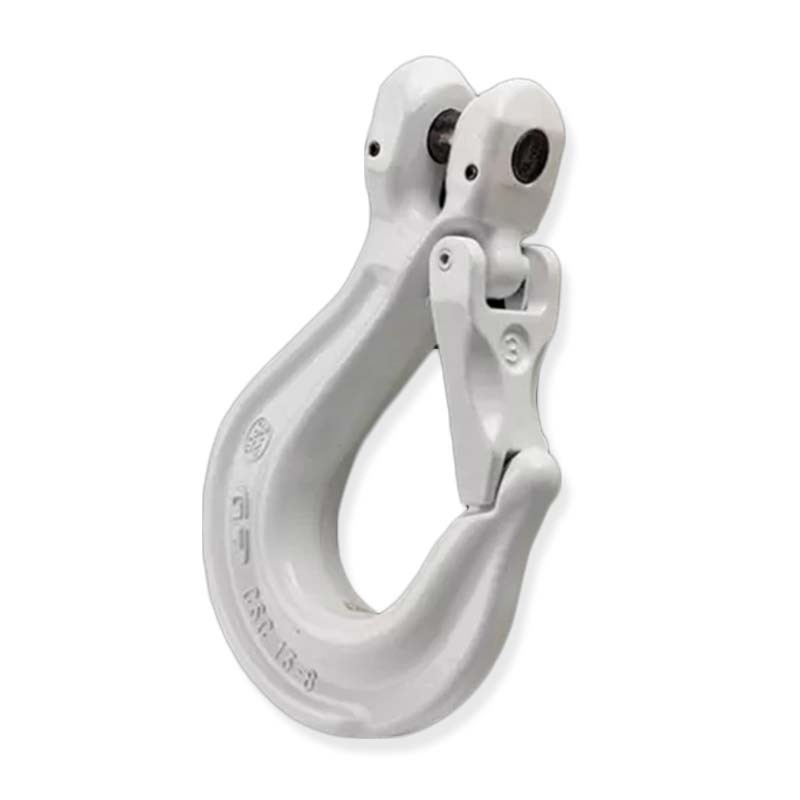

Clevis sling hook
€17.60
HT
- EN 1677
- WLL (Working Load Limit): from 1.12 to 15 tonnes
- Material Grade: Grade 80, supplied with pin
WLL

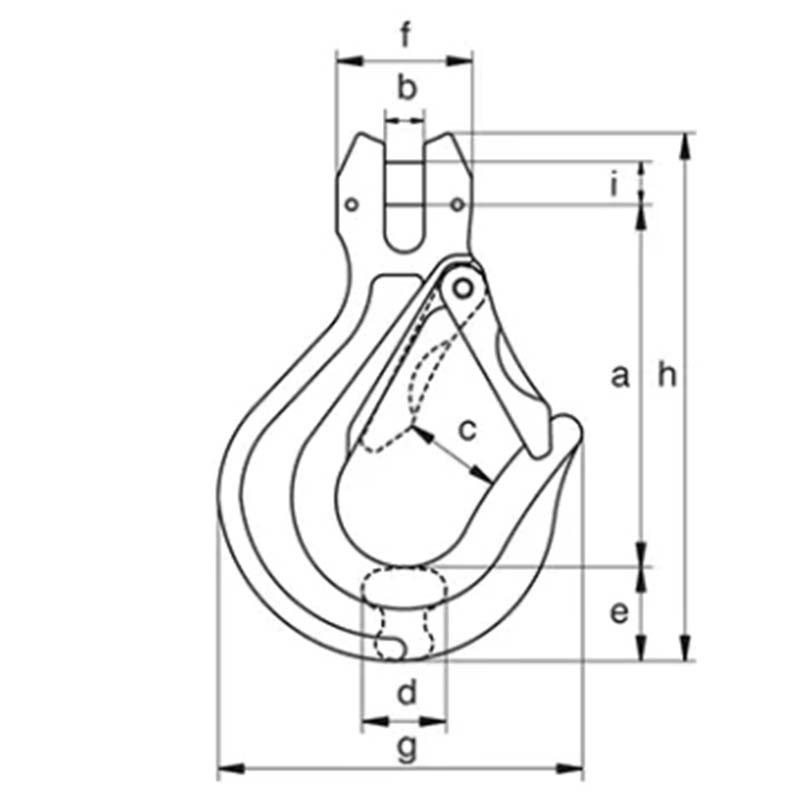

| WLL(T) | Chain | A | B | C | D | E | F | G | H | I | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0,8 | 5 | 74 | 7 | 26 | 15 | 20 | 28 | 72 | 108 | 8 | 0.29 |
| 1,12 | 6 | 74 | 7 | 26 | 15 | 20 | 28 | 72 | 108 | 8 | 0.29 |
| 2 | 95 | 9 | 30 | 20 | 24 | 32 | 87 | 136 | 9 | 0.58 | |
| 3,2 | 10 | 113 | 12 | 33 | 24 | 29 | 42 | 106 | 164 | 13 | 1.08 |
| 5,4 | 13 | 139 | 15 | 37 | 32 | 39 | 54 | 133 | 208 | 16 | 2.12 |
| 8,2 | 16 | 162 | 19 | 44 | 40 | 44 | 68 | 165 | 240 | 20 | 3.67 |
| 12,8 | 18 - 20 | 199 | 23 | 61 | 49 | 62 | 82 | 208 | 305 | 24 | 7.32 |
| 15,5 | 22 | 239 | 25 | 75 | 54 | 65 | 97 | 242 | 350 | 28 | 10.7 |
