Eye sling Hook
Eye sling Hook
Previous
Next
Eye sling Hook
Eye sling Hook

Eye sling Hook

SKU HVCSO05/06 Category Lifting hooks
€11.85
HT
  • Norme EN 1677 CE
  • WLL available from 1.12 to 15.5 tonnes
  • Grade 80
  • White lacquer
WLL

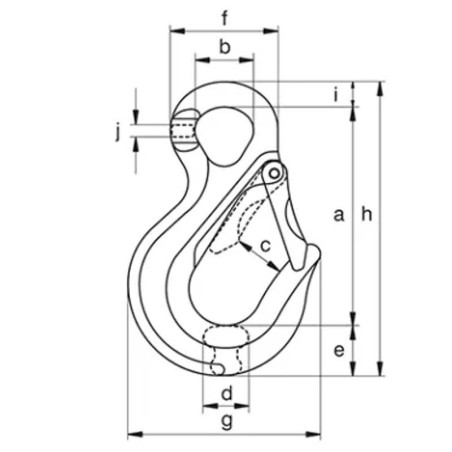

WLL (ton) Chain Ømm A B C D E F G H I J Weight (KG)
1,12 6 86 23 26 15 19 43 72 114 10 6 0.28
2 8 103 26 30 20 24 51 87 139 12 8 0.6
3,2 10 129 36 33 24 28 65 106 171 15 10 1.08
5,4 13 152 41 37 32 39 77 133 209 18 12 1.1
8,2 16 191 52 43 40 43 94 165 255 21 17 3.5
12,8 18 - 20 237 61 61 49 61 115 208 326 28 21 7.04
15,5 22 280 72 75 54 64 132 242 375 30 23 9.95
21,6 26 251 48 73 55 86 111 236 363 32 32 14.2
32,8 32 292 58 87 67 104 139 286 435 39 39 21.7
