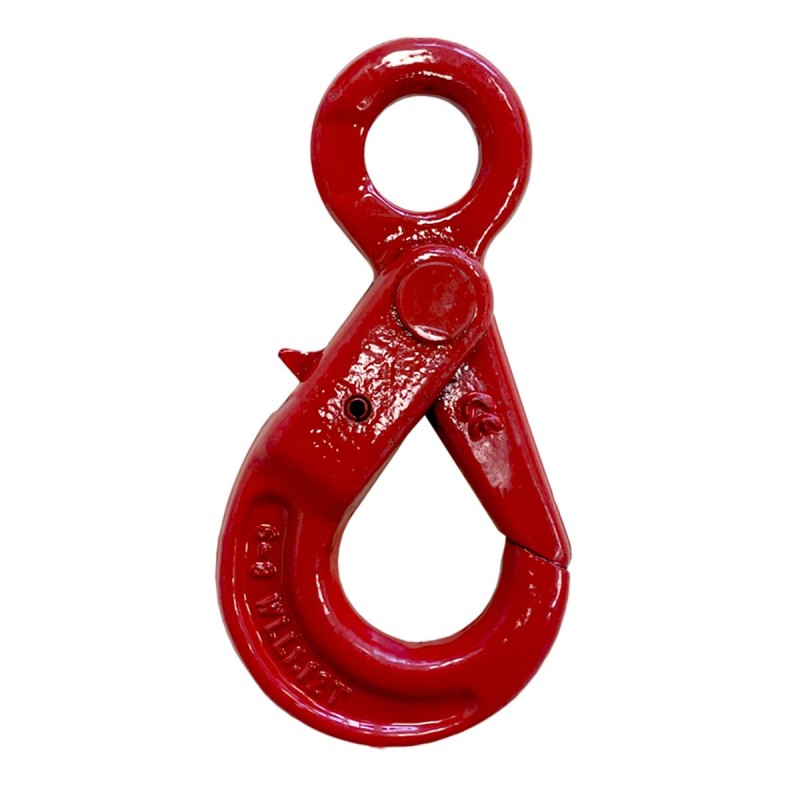

Eye self locking hook
€10.20
HT
- Standard: EN 1677
- WLL (Working Load Limit): from 1,120 kg to 15,000 kg
- WLL and CE mark stamped by cold forming
- Grade 80 alloy steel>
WLL

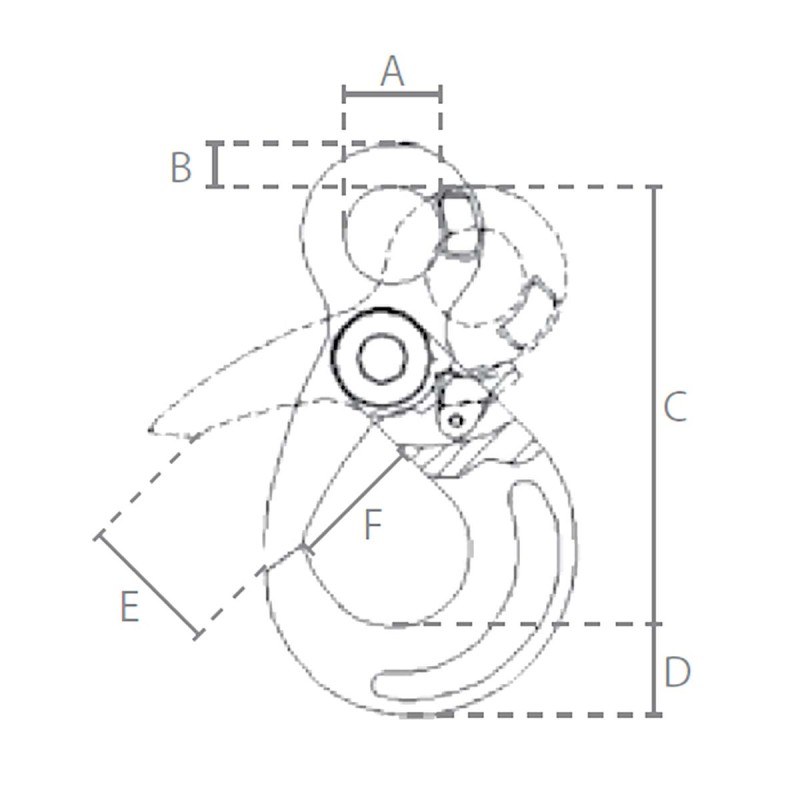

| WLL(Kg) | Weight | Ø eye-A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| 1120 | 0.5 | 21mm | 11 | 110 | 20 | 32 | 28 |
| 2000 | 0.9 | 25mm | 13 | 136 | 26 | 40 | 35 |
| 3150 | 1.4 | 35mm | 15 | 168 | 30 | 48 | 45 |
| 5300 | 2.9 | 40mm | 20 | 206 | 40 | 57 | 53 |
| 8000 | 5.9 | 50mm | 26 | 254 | 51 | 65 | 63 |
| 12500 | 8.5 | 65mm | 27 | 275 | 55 | 80 | 86 |
