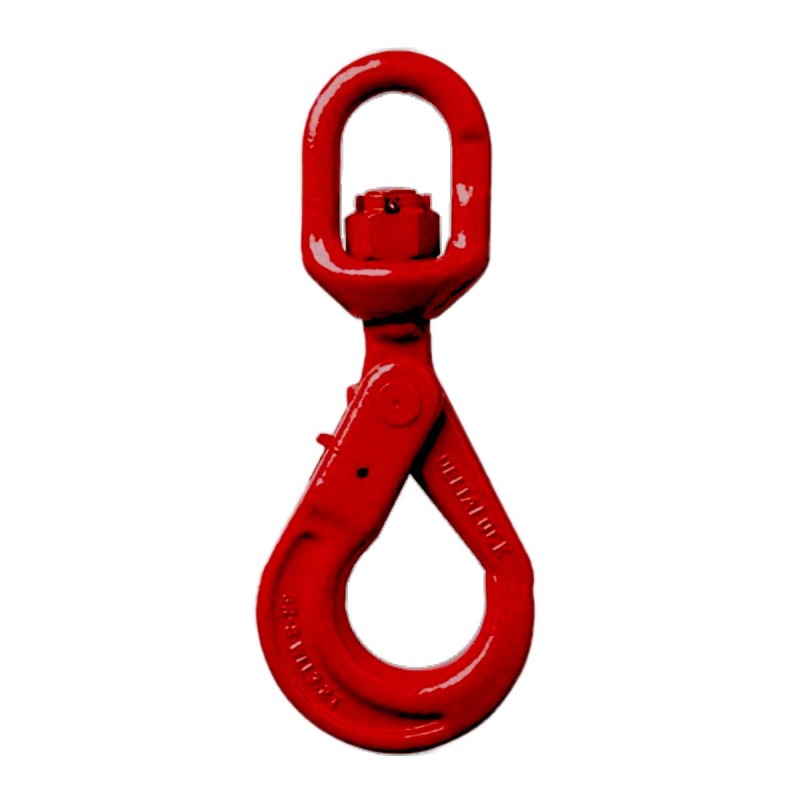

Automatic Locking Swivel Hook
€16.30
HT
- Standard: EN 1677
- WLL (Working Load Limit): from 12 kg to 15,000 kg
- WLL and CE mark stamped by cold forming
- Grade 80 alloy steel>
WLL
Delivery 24-48H

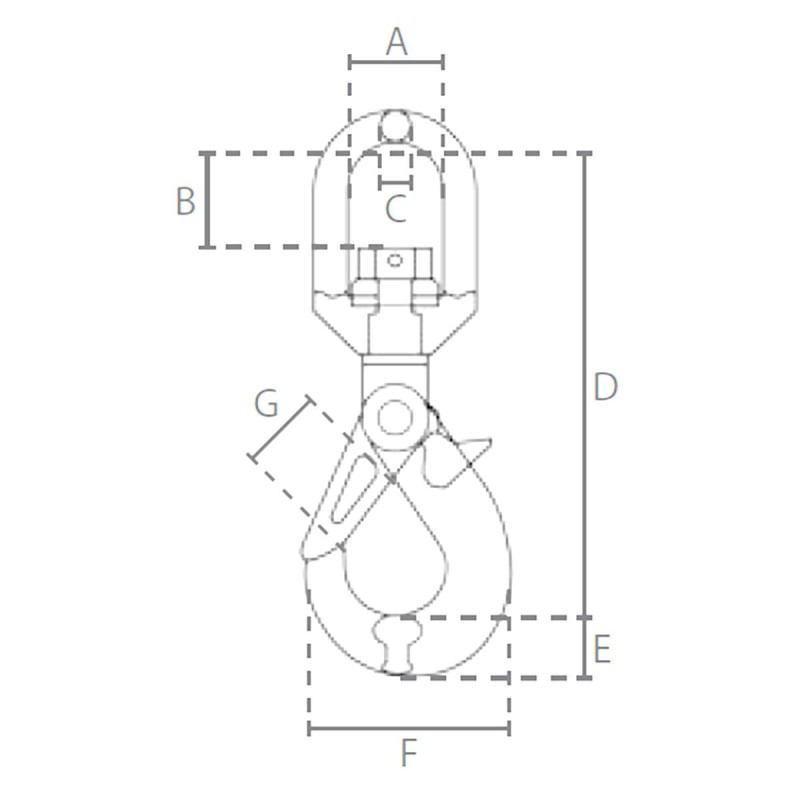

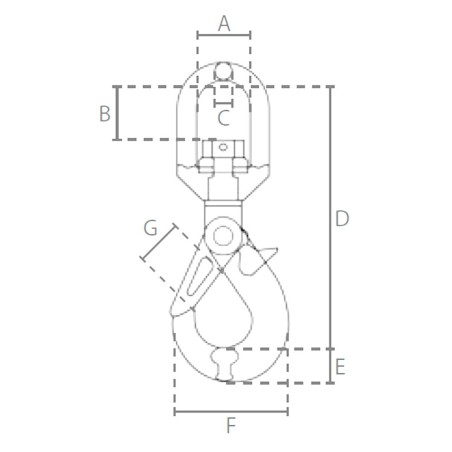

| WLL | Weight(Kg) | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| 1.12 T : chain Ø6mm | 0.7 | 33 | 26 | 12 | 152 | 20 | 32 | 28 |
| 2 T : chain Ø8mm | 1.2 | 36 | 30 | 13 | 189 | 26 | 40 | 35 |
| 3.15 T : chain Ø10mm | 2 | 42 | 39 | 15 | 223 | 30 | 48 | 45 |
| 5.3 T : chain Ø13mm | 3.6 | 50 | 41 | 16 | 267 | 40 | 57 | 53 |
| 8 T : chain Ø16mm | 7.3 | 61 | 58 | 21 | 339 | 51 | 65 | 63 |
| 12.5 T : chain Ø20mm | 10.7 | 72 | 63 | 27 | 370 | 55 | 82 | 82 |
| 15 T : chain Ø22mm | 17.5 | 97 | 98 | 31 | 466 | 67 | 80 | 76 |
