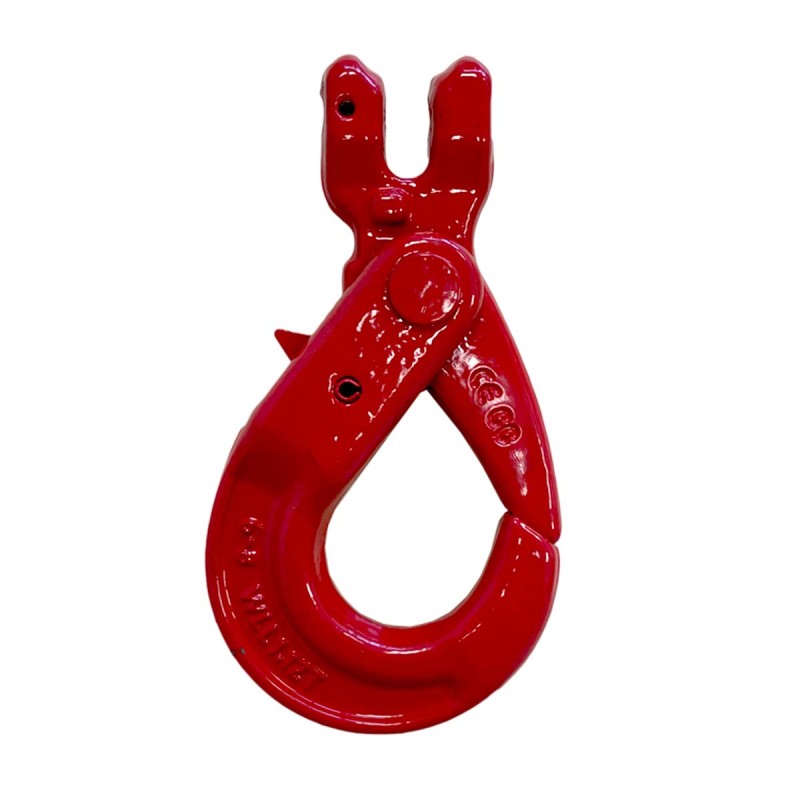

Automatic Locking Shackle Hook
€8.40
HT
- Standard: EN 1677
- WLL (Working Load Limit): from 1,120 kg to 15,000 kg
- WLL and CE mark stamped by cold forming
- Grade 80 alloy steel>
WLL

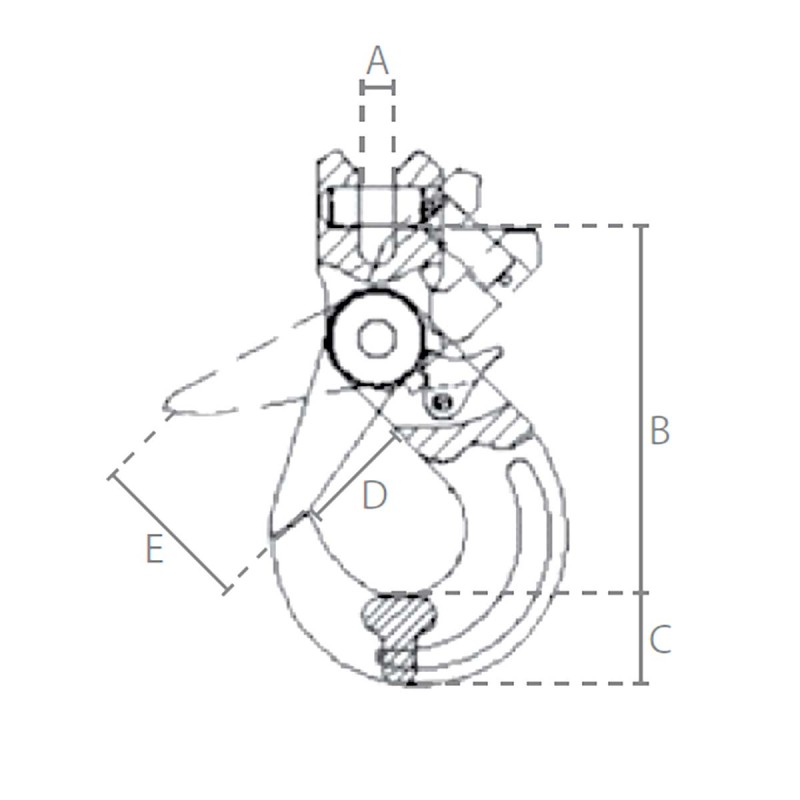

| WLL(Kg) | Weight | Ø chain -A | B | C | D | E |
|---|---|---|---|---|---|---|
| 1 120 | 0.5 | 6 mm | 96 | 20 | 28 | 35 |
| 2 000 | 0.9 | 8 mm | 121 | 24 | 36 | 40 |
| 3 150 | 1.5 | 10 mm | 146 | 30 | 45 | 50 |
| 5 300 | 2.9 | 13 mm | 179 | 40 | 53 | 57 |
| 8 000 | 6 | 16 mm | 218 | 51 | 63 | 65 |
| 12 500 | 7.5 | 20 mm | 240 | 55 | 86 | 80 |
| 15 000 | 12.3 | 25 mm | 277 | 67 | 76 | 80 |
