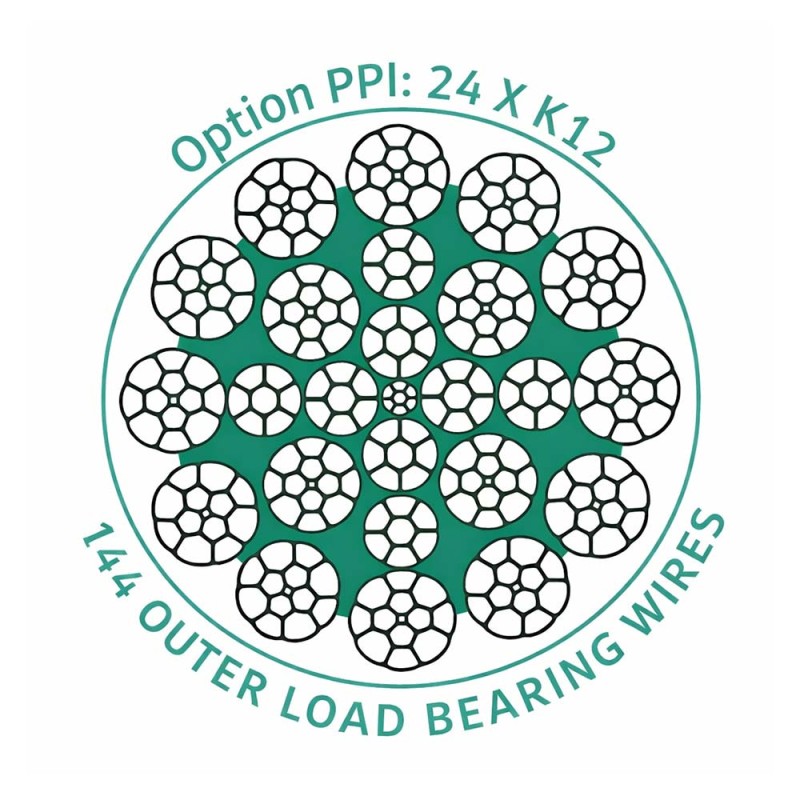

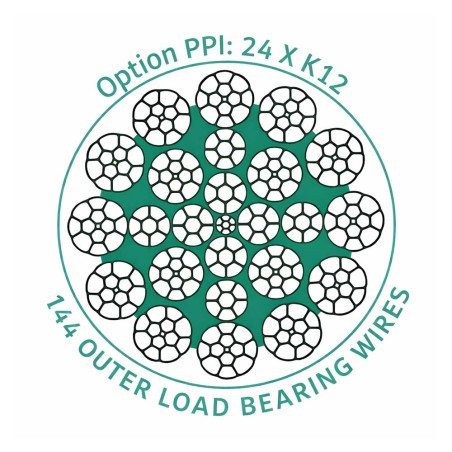

LT 24 K PPI rope – Very high quality
EN 12385 standard - CE | Certificate of conformity supplied
Application
Port crane, offshore and container unloading gantry
Use
Humid and marine environment (Port, Offshore)
Use with heavy loads | non-rotation resistant
High breaking load / Internal anti-corrosion plastic coating

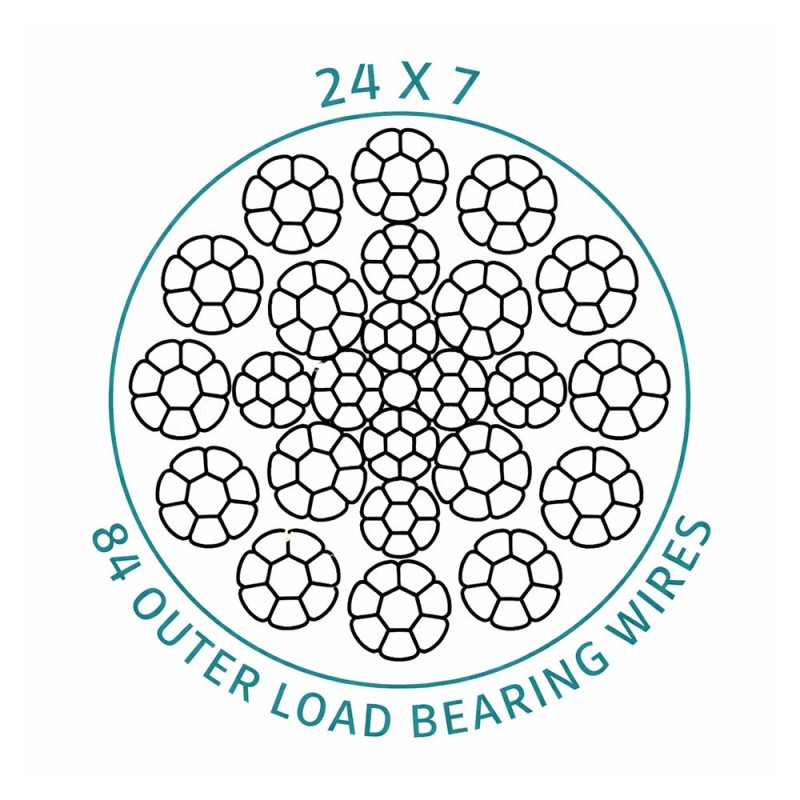

24(W) x K7
<thclass="column0">Construction <thclass="column1 style0 s">Ømm <thclass="column2 style0 b">Section mm² <thclass="column3 style0 s">weights-kg/m <thclass="column4 style0 s">Breaking Load-kN| 24(W) x K7 | 7,2 | 26 | 0,23 | 43,7 |
| 24(W) x K7 | 8 | 33 | 0,29 | 55,1 |
| 24(W) x K7 | 9 | 41 | 0,37 | 69,6 |
| 24(W) x K7 | 10 | 53 | 0,46 | 88,2 |
| 24(W) x K7 | 11 | 65 | 0,57 | 108,0 |
| 24(W) x K7 | 12 | 77 | 0,68 | 128,0 |
| 24(W) x K7 | 13 | 89 | 0,78 | 149 |
| 24(W) x K7 | 14 | 104 | 0,91 | 173 |
| 24(W) x K7 | 15 | 119 | 1,04 | 198 |
| 24(W) x K7 | 16 | 137 | 1,21 | 230 |
| 24(W) x K7 | 18 | 177 | 1,55 | 295 |
| 24(W) x K7 | 19 | 194 | 1,70 | 324 |
| 24(W) x K7 | 20 | 212 | 1,86 | 354 |
| 24(W) x K7 | 22 | 259 | 2,27 | 432 |
| 24(W) x K7 | 24 | 311 | 2,74 | 519 |
Construction 24(W) x K17
| Finition | Ømm | Section mm² | Poids-kg/m | Charge de rupture-kN |
|---|---|---|---|---|
| 24(W) x K 17 | 16 | 138 | 1,21 | 229 |
| 24(W) x K 17 | 18 | 174 | 1,54 | 290 |
| 24(W) x K 17 | 19 | 194 | 1,72 | 324 |
| 24(W) x K 17 | 20 | 215 | 1,91 | 359 |
| 24(W) x K 17 | 22 | 259 | 2,30 | 433 |
| 24(W) x K 17 | 24 | 315 | 2,79 | 526 |
| 24(W) x K 17 | 25,4 26 |
345 366 |
3,06 3,24 |
575 610 |
| 24(W) x K 17 | 28 | 423 | 3,75 | 706 |
| 24(W) x K 17 | 30 | 484 | 4,27 | 808 |
| 24(W) x K 17 | 32 | 561 | 4,96 | 937 |
| 24(W) x K 17 | 34 | 628 | 5,54 | 1047 |
| 24(W) x K 17 | 36 | 699 | 6,17 | 1165 |
| 24(W) x K 17 | 38 | 776 | 6,85 | 1165 |
