Stainless Steel Bow Shackle
€1.30

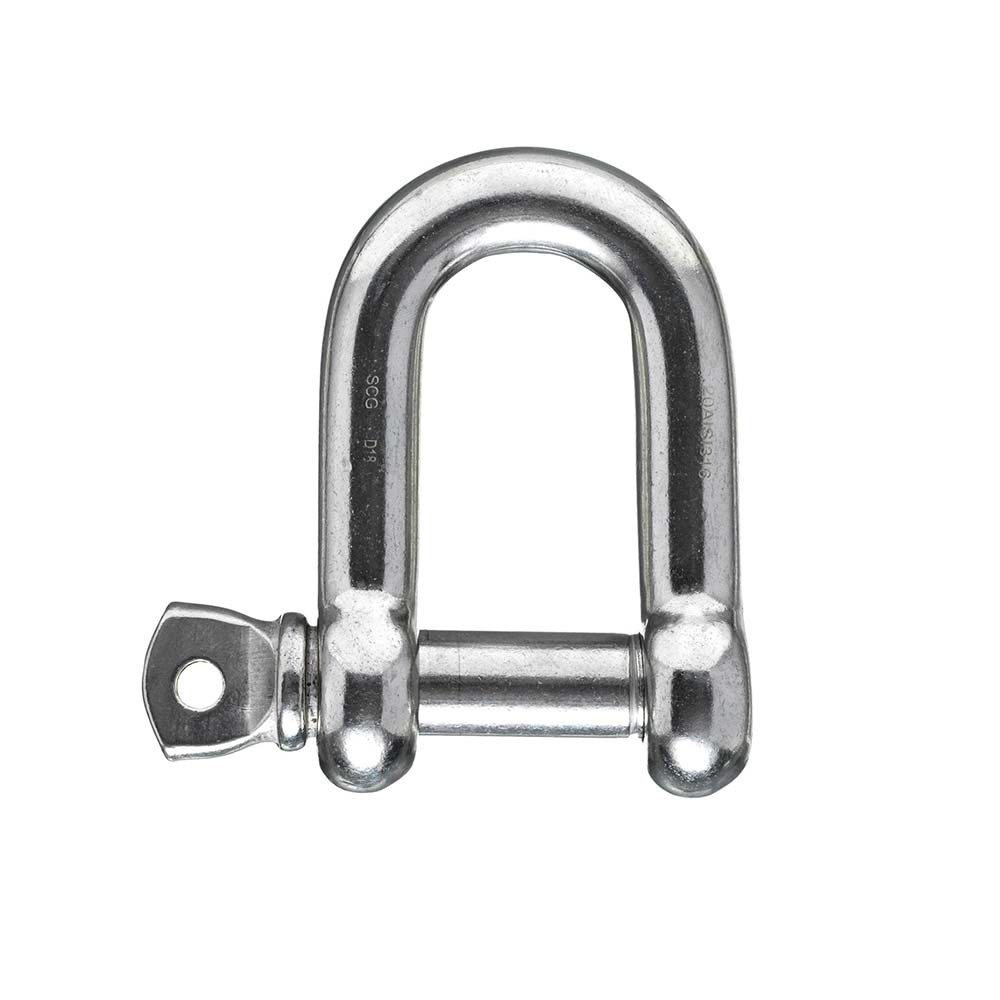

Stainless Steel Dee Shackle
Price:
€1.04
HT
- CE compliant
- 316 stainless steel
- Available diameter from 4 to 32 mm
- Screw pin
Diameter
Dimensions en millimètres
| Size | D | A | L | H | S.W.L. | Weight |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | Kg | Kg |
| 4 | 4 | 8 | 16 | 24 | 50 | 0,01 |
| 6 | 6 | 14 | 26 | 37 | 100 | 0,03 |
| 8 | 8 | 16 | 32 | 48 | 250 | 0,07 |
| 10 | 10 | 20 | 45 | 64 | 400 | 0,13 |
| 12 | 12 | 25 | 48 | 72 | 630 | 0,22 |
| 20 | 19 | 40 | 76 | 114 | 1600 | 0,69 |

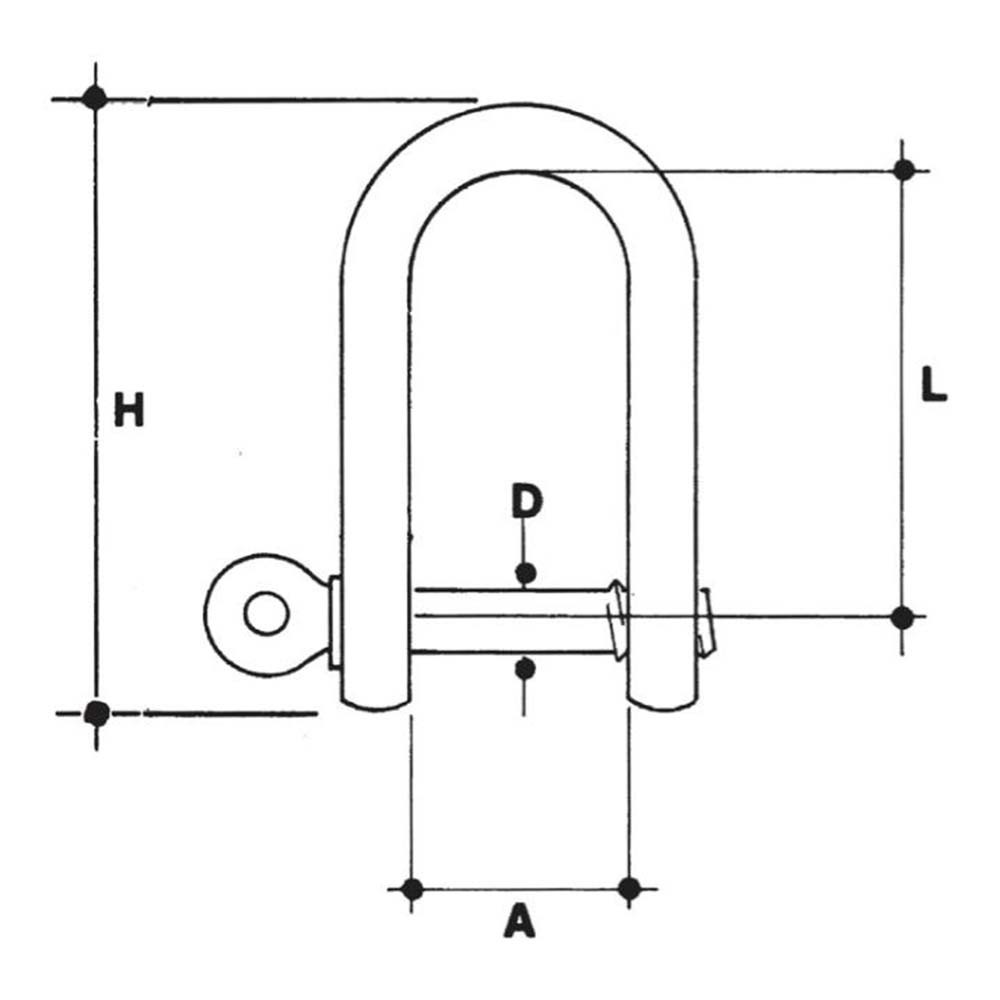

SST Shackle
Dimensions
