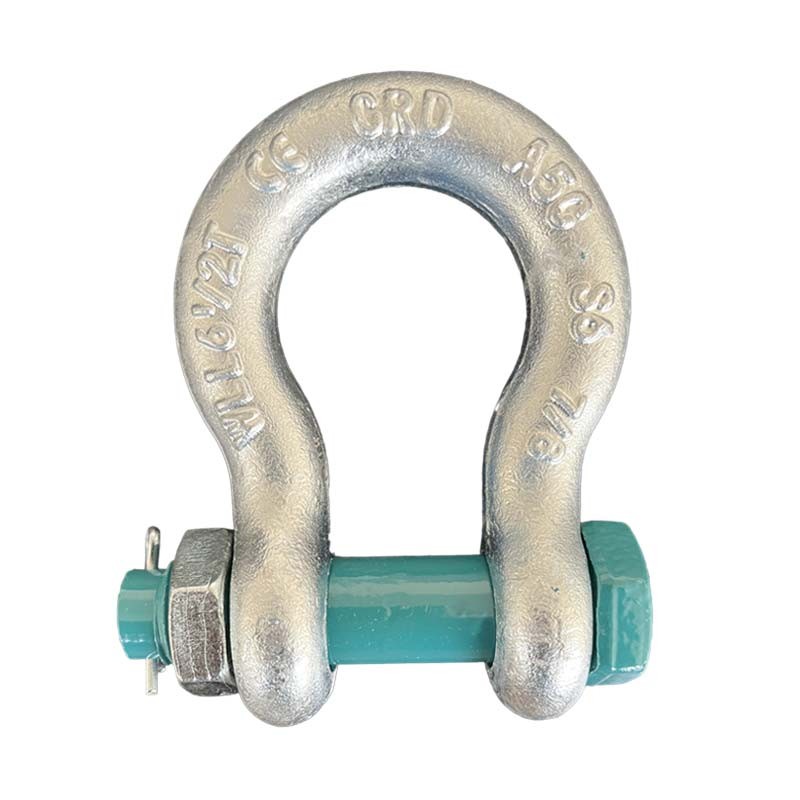

Bow shackle with safety bolt
€2.30
HT
- CE Conformity Certificate
- WLL available from 0.5 to 9.5 tons
- Quick (dis)assembly screw axis
WLL

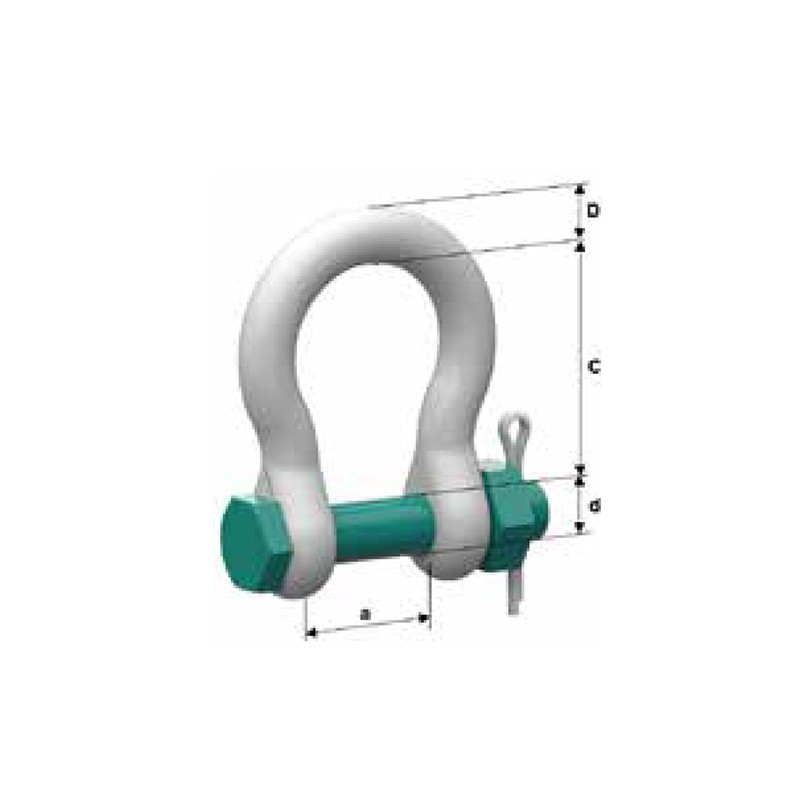

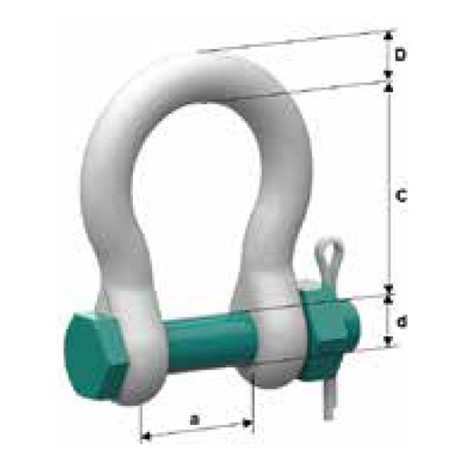

| Ref | WLL [t] | D[mm] | d [mm] | a [mm] | C[mm] |
|---|---|---|---|---|---|
| 4122954 | 2 | 12,7 | 16 | 20,5 | 47,5 |
| 4122955 | 3.25 | 18 | 19 | 28 | 60,5 |
| 4122956 | 4.75 | 20.5 | 22 | 32 | 72 |
| 4122957 | 6.5 | 24,5 | 25,0 | 38,5 | 84 |
| 4122959 | 8.5 | 27,5 | 28 | 44,5 | 95,5 |
| 4122960 | 9.5 | 29 | 32 | 46,0 | 108 |
| 4122961 | 12 | 32 | 35 | 51 | 119 |
| 4122962 | 13.5 | 35 | 38 | 58 | 133 |
| 4122964 | 17 | 38 | 42 | 60,5 | 146 |
