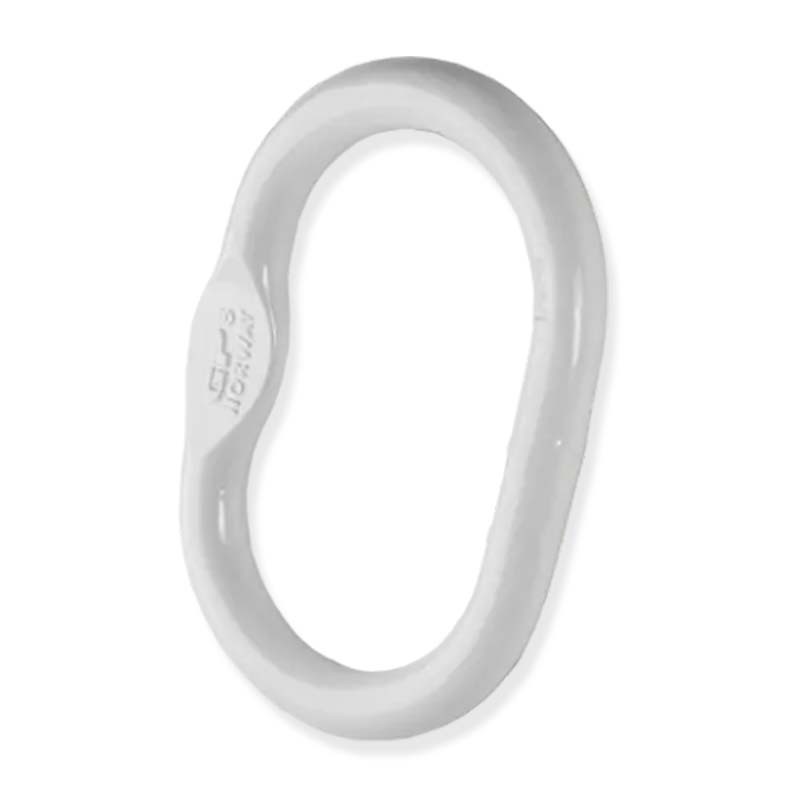

Grin Pin master link G80
€7.30
HT
- Alloy steel – Grade80, quenched and tempered
- With a flat section
- Safety factor: 1
- This master link is used to assemble 1-leg or 2-leg slings.
WLL
Delivery 24-48 H

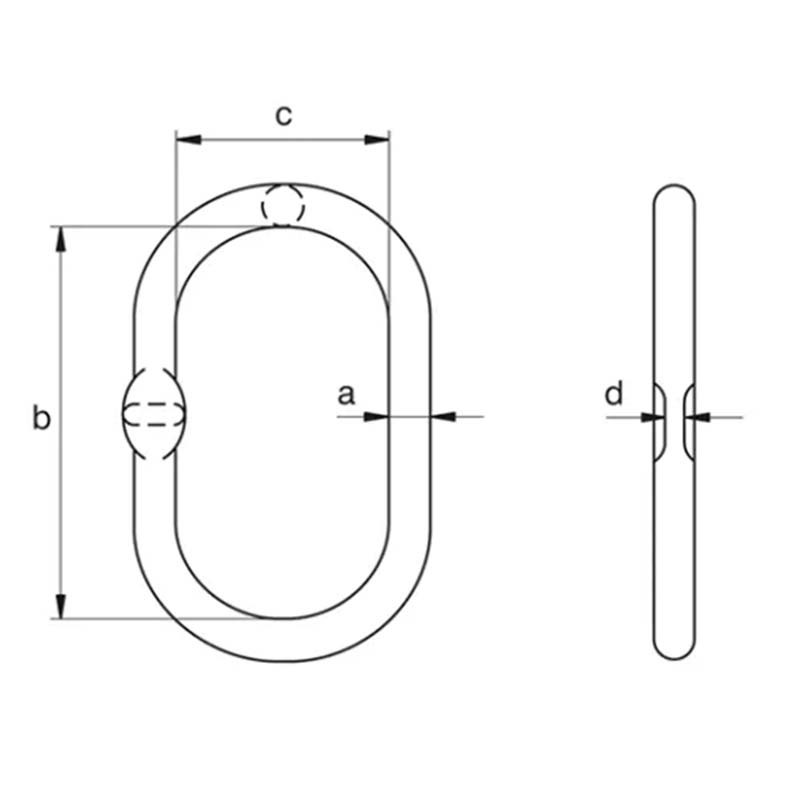

| WLL (Kg) | a | b | c | d | Weight |
|---|---|---|---|---|---|
| 1,6 | 13 | 115 | 60 | 7 | 0.4 |
| 3,2 | 16 | 120 | 70 | 7 | 0.6 |
| 4,5 | 18 | 135 | 75 | 9 | 0.84 |
| 6,2 | 20 | 150 | 90 | 11 | 1.1 |
| 8,2 | 22 | 170 | 90 | 14 | 1.6 |
| 10,6 | 25 | 190 | 103 | 14 | 2.3 |
| 12,8 | 28 | 209 | 120 | 17 | 3.1 |
| 15,5 | 30 | 235 | 125 | 17 | 4 |
| 20 | 36 | 270 | 145 | 22 | 6.6 |
| 25 | 38 | 250 | 150 | 22 | 7.1 |
| 37 | 45 | 300 | 200 | 22 | 12.1 |
| 50 | 50 | 380 | 200 | 50 | 18 |
| 63 | 55 | 360 | 200 | 55 | 21 |
| 100 | 70 | 500 | 250 | 70 | 44 |
| 125 | 80 | 503 | 280 | 80 | 60.7 |
