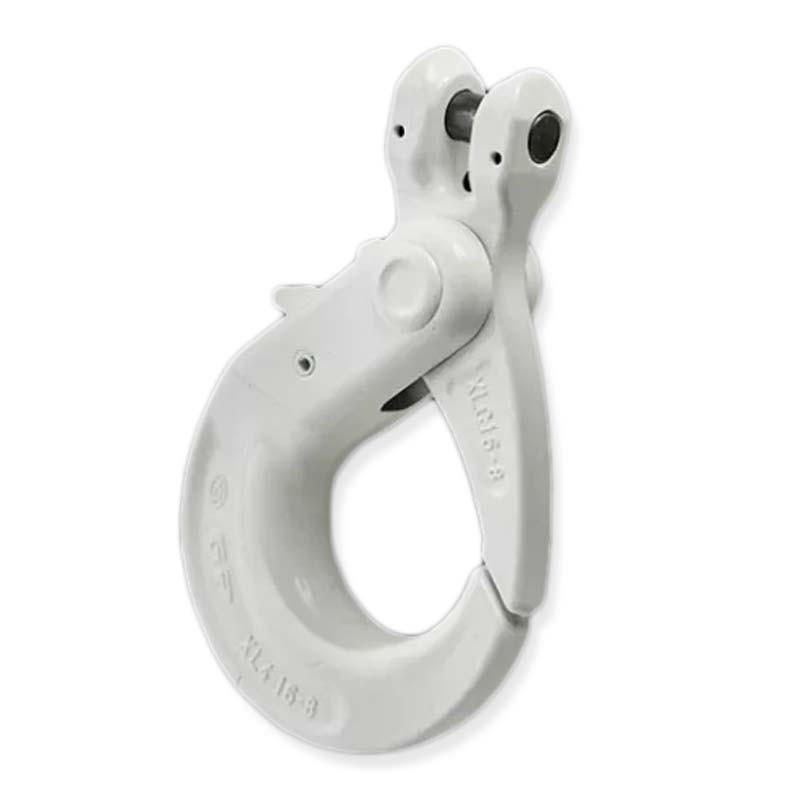

Clevis Self locking hook
€17.50
HT
- Material: Alloy steel, grade 80, quenched and tempered
- Standard: EN1677-2
- Certificates: 2.1, 2.2, 3.1, MPI b, DGUV
WLL

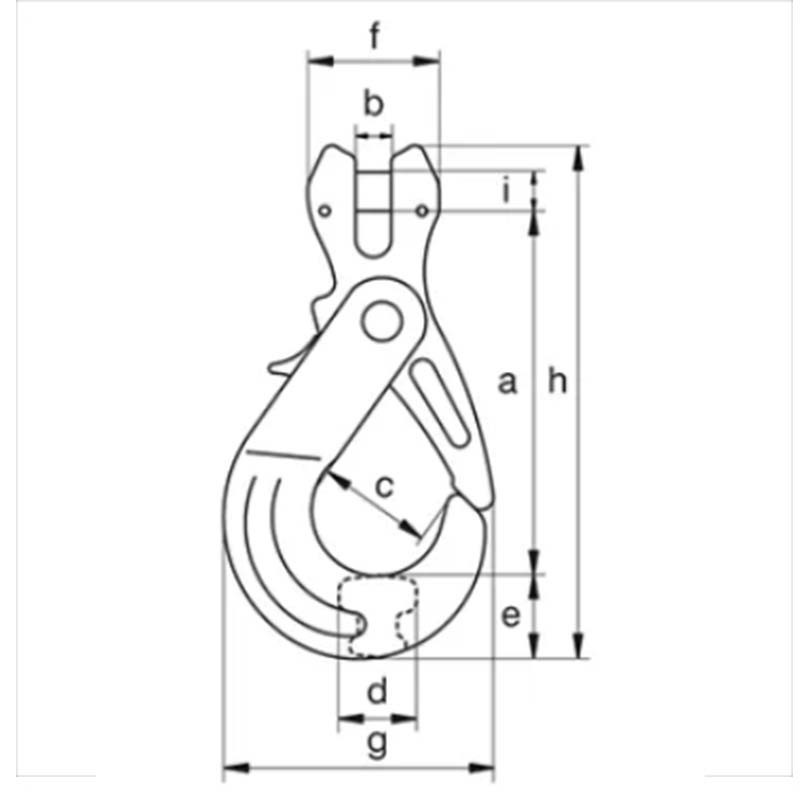

| WLL(t) | chain Ømm | A | B | C | D | E | F | G | H | I | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0,8 | 5 | 93 | 7 | 32 | 17 | 24 | 28 | 75 | 130 | 8 | 0.49 |
| 1,12 | 6 | 93 | 7 | 32 | 17 | 24 | 28 | 75 | 130 | 8 | 0.49 |
| 2 | 7-8 | 116 | 9 | 43 | 24 | 28 | 32 | 91 | 161 | 9 | 0.91 |
| 3,2 | 10 | 144 | 12 | 48 | 32 | 34 | 42 | 112 | 201 | 13 | 1.77 |
| 5,4 | 13 | 169 | 15 | 63 | 37 | 44 | 54 | 141 | 242 | 16 | 3.33 |
| 8,2 | 16 | 204 | 18 | 75 | 43 | 56 | 68 | 182 | 296 | 20 | 6.75 |
| 12,8 | 18 - 20 | 234 | 22 | 90 | 52 | 62 | 82 | 205 | 341 | 24 | 9.57 |
