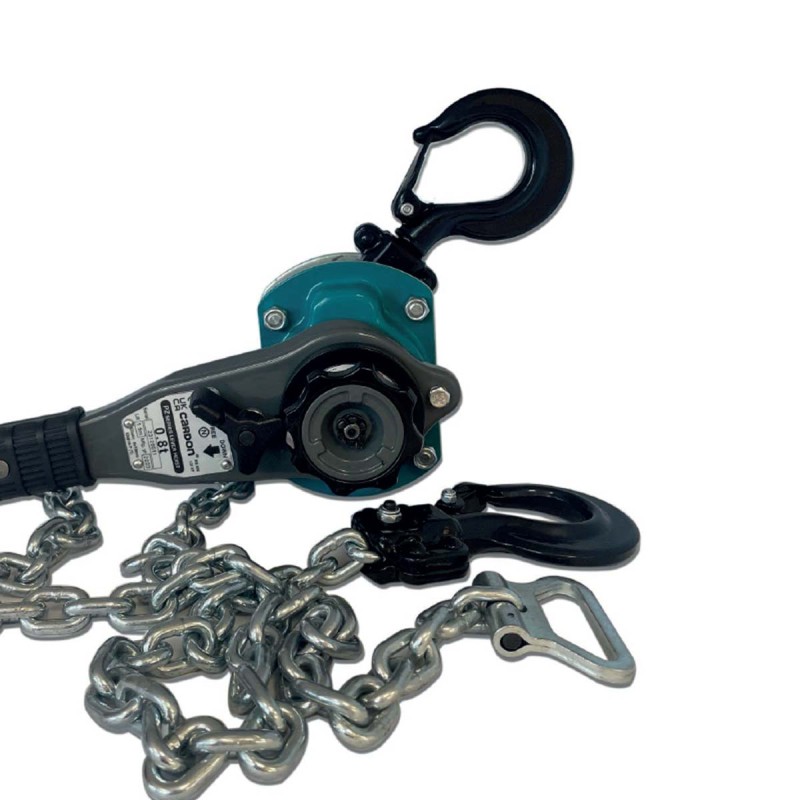

Lever Hoist CARDON WLL 0,8 T
Price:
€140.00
HT
- Working load limit : 800 Kg
- Lifting height options: 1.5 m and 3 m
- Chain made in France
- Standard CE
Lifting height
Delivery 24-48H

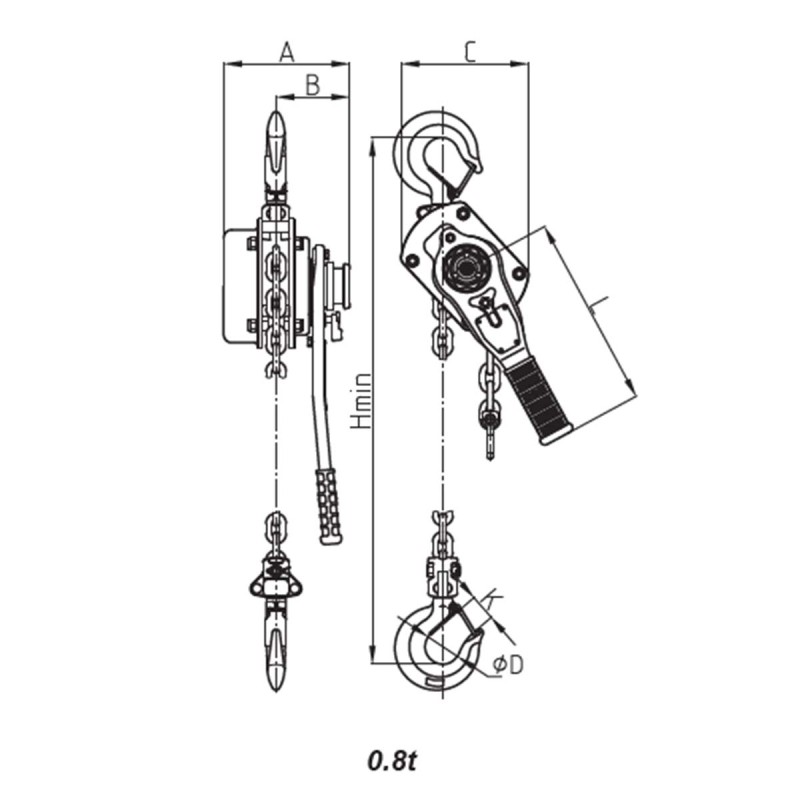

| WLL(T) | Chain | lift per turn | nominal load | Test load | A | B | C | D | H | L | K | Poids | weight /chain meter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.8 | 6x18 | 18.7mm | 180 N | 9.8 KN | 160 | 100 | 133 | 40 | 320 | 250 | 26 | 0.8 Kg | 7.1 Kg |
| 1.6 | 8x24 | 16mm | 355 N | 19.6 KN | 182 | 109 | 157 | 45 | 365 | 270 | 29 | 1.4 Kg | 10.8 Kg |
| 3,2 | 10x30 | 16.8mm | 335 N | 39.2 KN | 207.5 | 122 | 210 | 55 | 490 | 430 | 39 | 2.2 Kg | 23.3 Kg |
| 6,3 (2 brins) | 10x30 | 8.4mm | 350 N | 77.2 KN | 208 | 122 | 253 | 68 | 580 | 430 | 43 | 4.3 Kg | 35.6 Kg |
