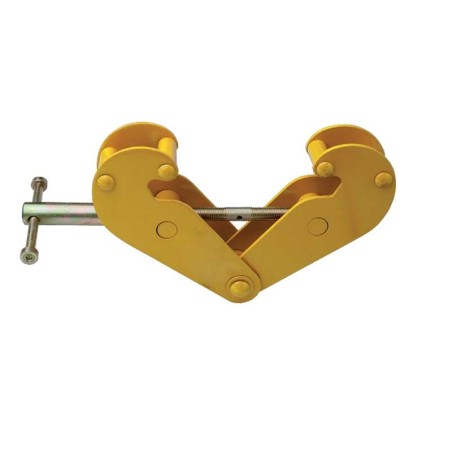

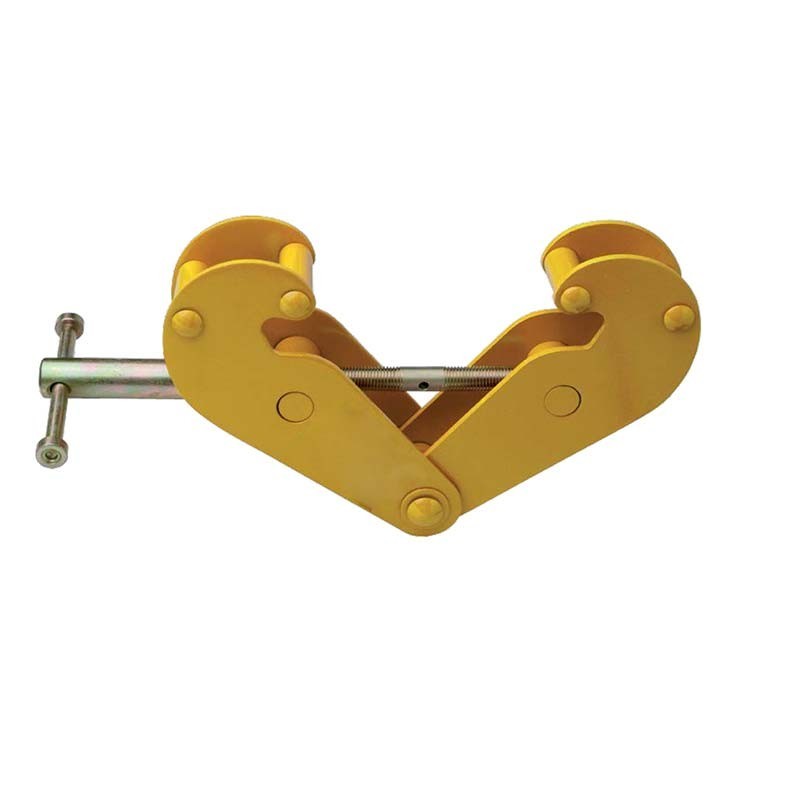

Beam Clamp
€57.00
HT
- Versatile application as a rigging point.
- Easy to use and wide clamping area.
- Individually adjustable by turning the threaded bolt.
- Complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
WLL

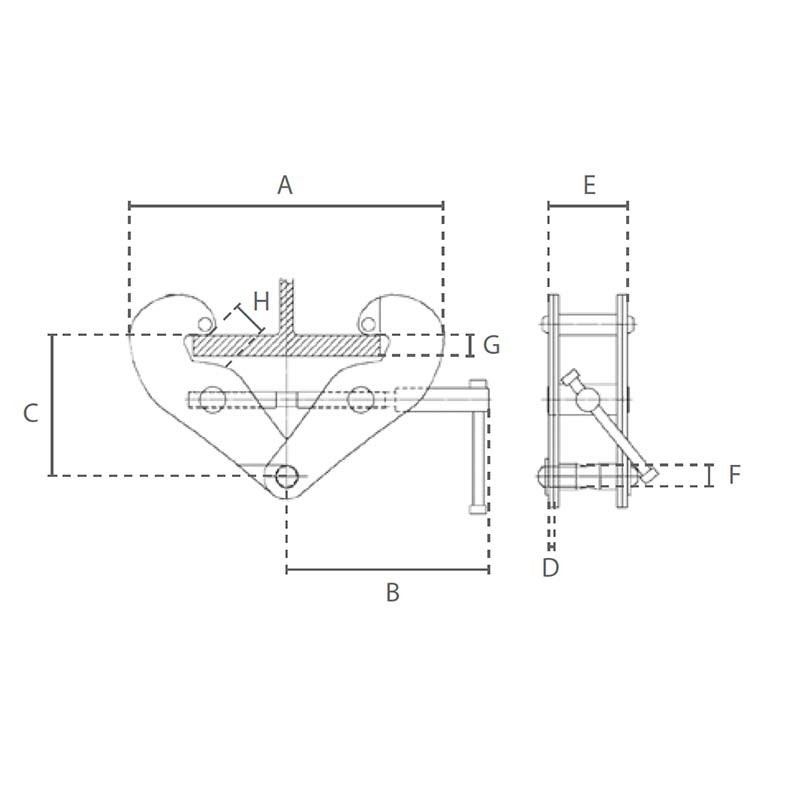

| WLL (T) | Beam width | Weight | A min | A max | B | C min | C max | D | E | F | G mas | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 75-220 | 3.8 | 180 | 360 | 215 | 102 | 155 | 5 | 74 | 22 | 20 | 25 |
| 2 | 75-220 | 4.6 | 180 | 360 | 215 | 102 | 155 | 6 | 76 | 22 | 20 | 25 |
| 3 | 80-320 | 9 | 235 | 490 | 260 | 140 | 225 | 8 | 103 | 24 | 20 | 37 |
| 5 | 80-320 | 11 | 235 | 490 | 260 | 140 | 225 | 10 | 110 | 28 | 20 | 37 |
| 10 | 90-320 | 16 | 320 | 505 | 260 | 170 | 225 | 12 | 120 | 40 | 20 | 40 |
| 20 | 90-370 | 39.6 | 512 | 713 | 431 | 315 | 361 | 16 | 196 | 70 | 20 | 40 |
